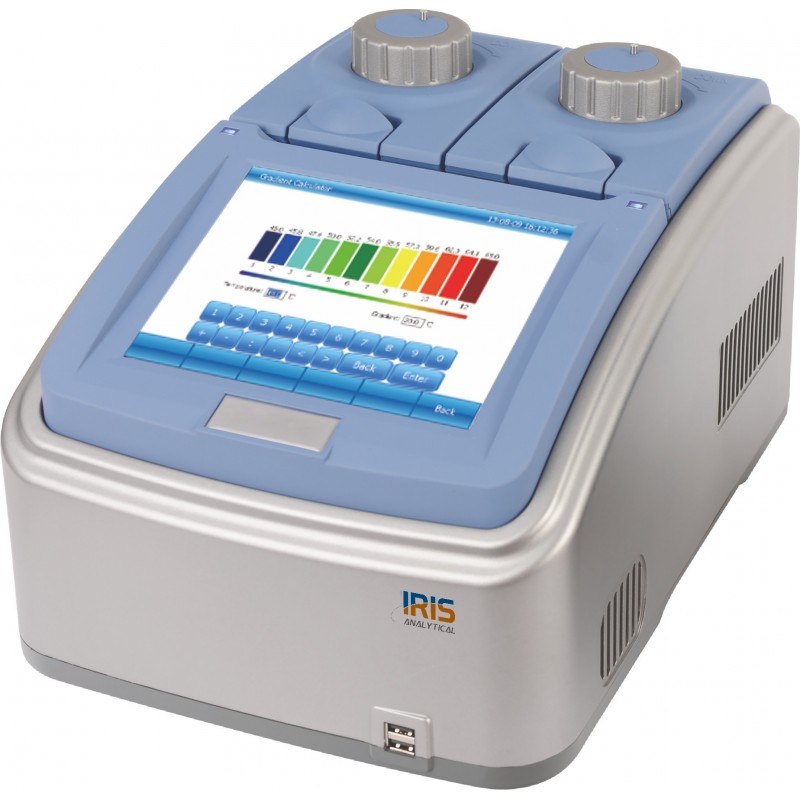

Dual Block Thermal Cyclers ITCM-4045D accommodates 384 well, In-situ Plate, this block is completely independently of each other and without interference Fabricated with anodizing technology that have prompt heating conducting and adequate corrosion resistance property.
Dual Block Thermal Cyclers ITCM-4045D has been used in PCR applications in research and development, food science, pharmaceuticals, life science, animal diagnostics, and analytical laboratories. Features with customized Marlow Peltier heating units and form 4 circuits to control 4 temperature zones with vibrant touch LCD display and maximum ramping rate 5 ℃/s.
Dual Block Thermal Cyclers ITCM-4045D accommodates 384 well, In-situ Plate, this block is completely independently of each other and without interference Fabricated with anodizing technology that have prompt heating conducting and adequate corrosion resistance property.
Data sheet
| Model | ITCM-4005D | ITCM-4010D | ITCM-4015D | ITCM-4020D | ITCM-4025D | ITCM-4030D | ITCM-4035D | ITCM-4040D | ITCM-4045D | ITCM-4050D | ||||||
| Capacity | 96×0.2 ml | 60×0.5 ml | 2×48×0.2 ml | 48×0.2 ml + 30×0.5 ml | 384 well, In-situ Plate | |||||||||||
| Display | LCD, 8 inch, 800×600 pixels | |||||||||||||||
| Temperature Range | 0 to 100? | |||||||||||||||
| Number of Program | 10000 +(USB FLASH) | |||||||||||||||
| Uniformity | ? ± 0.2? | |||||||||||||||
| Accuracy | ? ± 0.1? | |||||||||||||||
| Resolution | 0.1? | |||||||||||||||
| Number of Cycle | 100 | |||||||||||||||
| Number of Step | 30 | |||||||||||||||
| Holding Temperature | 4? | |||||||||||||||
| Temperature Control | BlockTube | |||||||||||||||
| Heating Rate | 5?/s | |||||||||||||||
| Cooling Rate | 4?/s | |||||||||||||||
| Ramping Rate Adjustable | 0.1 to 5? | |||||||||||||||
| Gradient Temp. Range | - | 30 to 100? | - | 30 to 100? | - | 30 to 100? | - | 30 to 100? | - | 30 to 100? | ||||||
| Gradient Uniformity | - | ?±0.2? | - | ?±0.2? | - | ?±0.2? | - | ?±0.2? | - | ?±0.2? | ||||||
| Gradient Accuracy | - | ?±0.2? | - | ?±0.2? | - | ?±0.2? | - | ?±0.2? | - | ?±0.2? | ||||||
| Gradient Spread | - | 1 to 30? | - | 1 to 30? | - | 1 to 30? | - | 1 to 30? | - | 1 to 30? | ||||||
| Hot Lid Height Adjustable | Step less Adjustable | |||||||||||||||
| Hot Lid Temperature | 30 to 110? | |||||||||||||||
| Connectivity | USB 2.0, LAN | |||||||||||||||
| Temp Increment/Decrement | 0.1 to 10.0? | |||||||||||||||
| Increase/Decrease in Time | 1 Sec to 600 Sec | |||||||||||||||
| Power consumption | 600 W | |||||||||||||||
| Overall Dimensions | 390×270×255 mm | |||||||||||||||
| Net Weight | 9 kg | |||||||||||||||
| Electrical Requirements | 264 V AC , 47 to 63 Hz | |||||||||||||||
| Catalogue No. | 620300503 | 620301003 | 620301503 | 620302003 | 620302503 | 620303003 | 620303503 | 620304003 | 620304503 | 620305003 | ||||||
