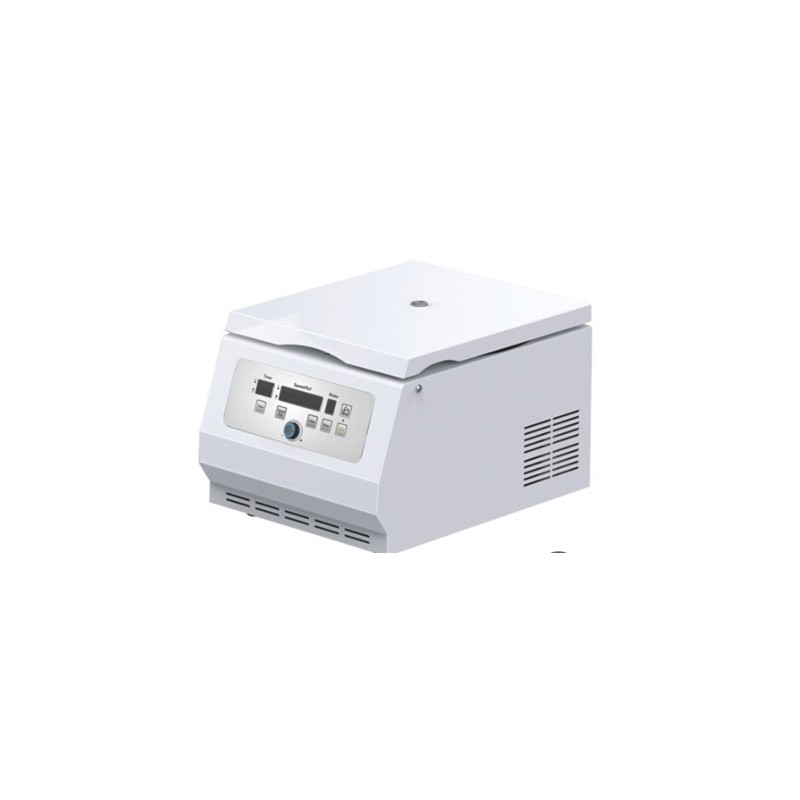

Microcentrifuge IBMC-1000 provides quick cooling function with ST microprocessor control system for rapid pre-cooling of rotor and centrifuge. Spins sample volumes up to 400ml (5ml×8/100mlx4) with maximum speed 6000 rpm. The IBMC-1000 designed for multipurpose with the availability of multiple ranges of swing rotors, angle rotors, ELISA Plate Rotor, and basket. Maintenance-free brushless motor drive. Suitable for medical laboratory, industrial laboratory, biochemical, and molecular biological research applications. Features with LED display and keypad and single knob controlled to change parameter quickly.
Accessories
Rotors
|
Rotor |
Capacity |
|
Swing Rotor 1: |
50x4 ml;5000rpm;4980xg
|
|
Swing Rotor 2: |
100x4ml;5000rpm;4600xg
|
|
Swing Rotor 3: |
50x8ml;4000rpm;2720xg
|
|
Swing Rotor 4: |
15x16ml;4000rpm;2790xg
|
|
Swing Rotor 5: |
5x24ml;4000rpm;2540xg
|
|
ELISA Plate Rotor 9: |
2x2x96 holes;3500rpm;2190xg
|
|
Angle Rotor 10: |
15x12ml;6000 rpm;5150xg
|
|
Basket 11: |
8/10×16;40002557 |
140500502
Data sheet
- Catalogue No.
- 140500502
- Electrical Requirements
- AC230V/50, 60Hz
- Power
- 420 W
- Net Weight (kg)
- 29.5 kg
- External Dimemsions (HxLxW) mm
- 390x500x3200 mm
- Display
- LED
- Capacity
- 400ml(5ml×8/100mlx4)
- Max RCF
- 5150xg
- Speed Range (rpm)
- 6000 rpm
- Model
- IBMC-1000
- Product Type
- Micro Centrifuge
- Comes with the digital LED screen with multi-functional knob combination
- Eco friendly with high-efficiency refrigerating system
- Centrifugal chamber is constructed with stainless steel
- New high torque frequency conversion driving motor
- Small footprint and easy handling
- Versatile and reliable
- Adopt a new ST microprocessor control system
- Electronic door lock, full steel door cover protection, superior to industrial standards and Password lock function
- Automatic lid opening function
- Rotors comes with sealed cover with addition accessories
- Suitable for medical laboratory, industrial laboratory, biochemical and molecular biological research applications
Model | IBMC-1000 |
Capacity | 400ml(5ml×8/100mlx4) |
Max RCF | 5150xg |
Speed Range | 6000rpm |
Noise | ?650dB(A) |
Display | LED |
Power Consumption | 420 W |
Dimension | 390x500x3200 mm |
Net Weight | 29.5 kg |
Electrical Requirement | AC230V/50, 60Hz |
Catalogue No. | 140500502 |
| Model | IBMC-1000 |
| Capacity | 400ml(5ml×8/100mlx4) |
| Max RCF | 5150xg |
| Speed Range | 6000rpm |
| Noise | ?650dB(A) |
| Display | LED |
| Power Consumption | 420 W |
| Dimension | 390x500x3200 mm |
| Net Weight | 29.5 kg |
| Electrical Requirement | AC230V/50, 60Hz |
| Catalogue No. | 140500502 |
| Model | Image | Name | Product Detail | Availability | Price | Action |
| 1405005-04 |
|
Swing Rotor 1 |
50x4 ml; 5000rpm; 4980xg |
3-4 Weeks |
Price On Request |
|
| 1405005-04 |
|

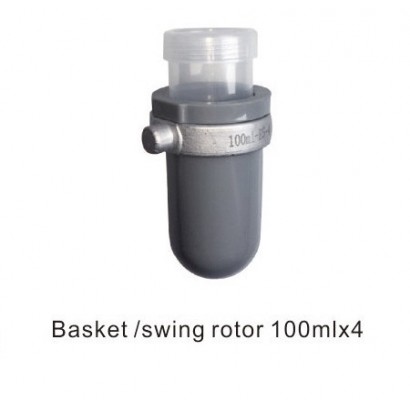

Swing Rotor 2 |
100x4ml; 5000rpm; 4600xg |
3-4 Weeks |
Price On Request |
|
| 1405005-04 |
|

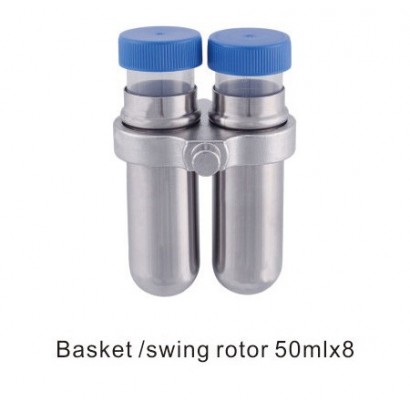

Swing Rotor 3 |
50x8ml; 4000rpm; 2720xg |
3-4 Weeks |
Price On Request |
|
| 1405005-04 |
|
Swing Rotor 4 |
15x16ml; 4000rpm; 2790xg |
3-4 Weeks |
Price On Request |
|
| 1405005-04 |
|

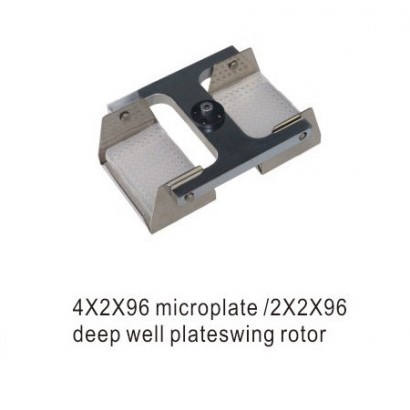

ELISA Plate Rotor 6 |
2x2x96 holes; 3500rpm; 2190xg |
3-4 Weeks |
Price On Request |
|
| 1405005-04 |
|
Angle Rotor 7 |
15x12ml; 6000 rpm; 5150xg |
3-4 Weeks |
Price On Request |
|
Download Catalog
