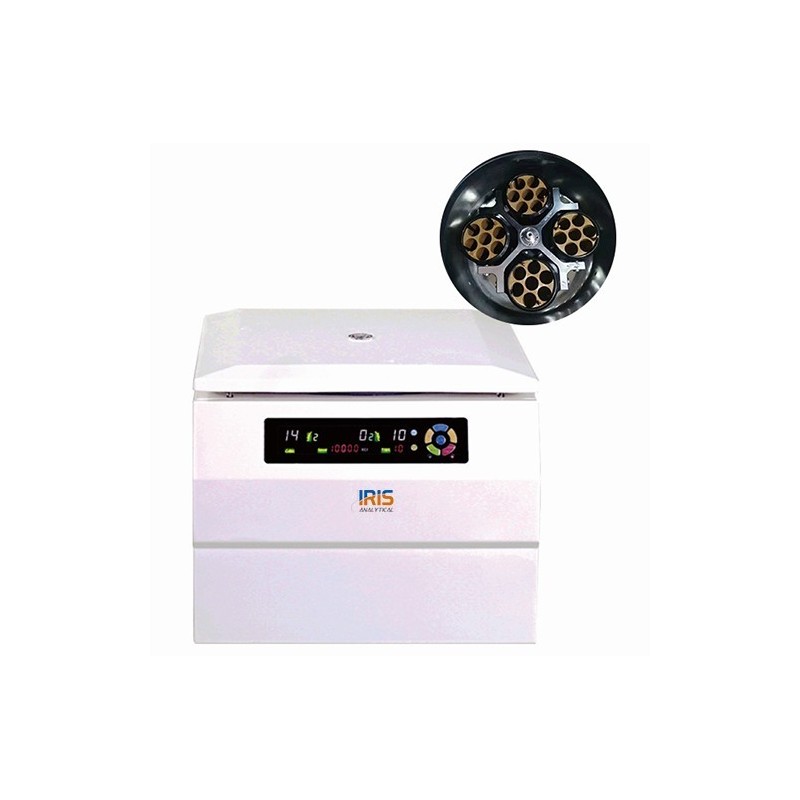

Benchtop High Speed Centrifuge IBHC-4700 small footprint and compact centrifuge of capacity from 12×5ml to 4×750ml with maximum speed ranging 21000 rpm. Features with digital LCD/LED screen to show parameters including running time, speed, RCF. Available with 10 profiles for acceleration and for deceleration with high efficiency. For safety we introduced electronic door lock function and, imbalance detection, over-speed protection, inching function, short-spin function. Storages up to 15 groups of programming space and accommodates angle rotor, Swing Rotor, Enzyme labelled plate rotor for 2×2×48 wells, Bucket, and PCR tubes.
Applications:
Accessories
Rotors
|
Model |
IBHC-4100 |
IBHC-4300 |
IBHC-4500 |
IBHC-4700 |
|
Rotor |
Angle Rotor 1:12/16×1.5/2.2ml; 16500rpm/18360×g Angle Rotor 2:12×10ml; 12000rpm/14800×g Angle Rotor 3:6×50ml/round bottom; 11000rpm/ 12840×g |
Angle Rotor 1:12/16×1.5/2.2ml; 18500rpm/23900×g Angle Rotor 2:18×0.5ml; 16000rpm/16000×g Angle Rotor 3:10/12×5ml; 15000rpm/15940×g Angle Rotor 4:24×1.5/2.2ml; 14000rpm/18757×g Angle Rotor 5:12×10ml; 13000rpm/17370×g Angle Rotor 6:12×15ml /sharp bottom,; 10000rpm/9690×g Angle Rotor 7:4×100ml; 10000rpm/9690×g Angle Rotor 8:6×50ml/round bottom; 12000rpm/15285×g Angle Rotor 9:6×50ml/sharp bottom; 11000rpm/12840×g |
Rotor 1:12×1.5ml; 20000rpm/26800×g Rotor 2:16×1.5/2.2ml;18000rpm/23900×g Rotor 3:18×0.5ml; 16500rpm/17000×g Rotor 4:10×5ml; 16000rpm/ 17420×g Rotor 5:24×1.5/2.2ml; 15000rpm/21532×g Rotor 6:12×10ml; 14000rpm/19640×g Rotor 7:2×8×0.2ml PCR; 13500rpm/13880×g Rotor 8:6×50ml/round bottom; 13000rpm/17940×g Rotor 9:6×50ml/sharp bottom; 12000rpm/15450×g Rotor 10:8×50ml; 11000rpm/13450×g Rotor 11:12×15ml; 10000rpm/9690×g Rotor 12:4×100ml; 10000rpm/9690×g Bucket: 16×10ml; 4200rpm/3100×g Enzyme labelled plate rotor:2×2×48 wells; 4200rpm/1900×g |
Angle Rotor 1:12×1.5/2.2ml; 21000rpm/30642×g Angle Rotor 2:16×1.5/2.2ml; 20000rpm/30230×g Angle Rotor 3:18×0.5ml; 18000rpm/20200×g Angle Rotor 4: 10/12×5ml; 18000rpm/20800×g Angle Rotor 5:24×1.5/2.2ml; 16000rpm/23200×g Angle Rotor 6:12×10ml; 15000rpm/23120×g Angle Rotor 7:12×15ml /Sharp bottom; 10000rpm/9690×g Angle Rotor 8:6×50ml/Round bottom; 14000rpm/19885×g Angle Rotor 9:6×50ml/Sharp bottom; 13000rpm/18065×g Angle Rotor 10:2×8×0.2ml PCR Tube; 13500rpm/13880×g Angle Rotor 11:4×8×0.2ml PCR Tube; 13000rpm/13800×g Angle Rotor 12:8×50ml; 12000rpm/16000×g Angle Rotor 13:4×100ml; 11000rpm/13000×g Angle Rotor 14:6×100ml; 10000rpm/11960×g Swing Rotor 1:4×750ml; 4200rpm/3950×g Swing Rotor 2:4×500ml; 4200rpm/3950×g Swing Rotor 3:96×5/7ml; 4200rpm/3950×g Swing Rotor 4:4×250ml; 4200rpm/3850×g Swing Rotor 5:6×250ml; 4200rpm/3850×g Swing Rotor 6:4×50/100ml; 5000rpm/4390×g Swing Rotor 7:8×50/100ml; 4200rpm/3100×g Swing Rotor 8:16×10/15ml; 4200rpm/3100×g Swing Rotor 9:24×10/15ml; 4200rpm/3100×g Swing Rotor 10:32×10/15ml; 4200rpm/3100×g Elisa plate rotor 1:4×2×96 Hole;4200rpm/3910×g Elisa plate rotor 2:2×2×96 Hole; 4200rpm/2530×g Elisa plate rotor 3:2×2×48 Hole; 4200rpm/1900×g |
Data sheet
| Model | IBHC-4100 | IBHC-4300 | IBHC-4500 | IBHC-4700 |
| Capacity | 6×50ml | 4×100ml | 4×100ml | 4×750ml |
| Max RCF | 18360×g | 23900×g | 26800×g | 30642×g |
| Speed Range | 16500 rpm | 18500 rpm | 20000 rpm | 21000 rpm |
| Noise | ? 65dB?A? | < 60dB?A? | ? 65dB?A? | |
| Rotor Diameter | 250 mm | 320 mm | 320 mm | 420 mm |
| Revolutions/min | ±20 rpm | |||
| Timer | 1 to 99 min | |||
| Power Consumption | 420 W | 500 W | 450 W | 750 W |
| Dimension | 400×300×330 mm | 440×360×330 mm | 440×360×330 mm | 560×460×400 mm |
| Packing Dimension | 410×310×360 mm | 545×430×395 mm | 510×460×460 mm | 640×530×470 mm |
| Net Weight | 23 kg | 28 kg | 30 kg | 45 kg |
| Gross Weight | 30 kg | 35 kg | 35 kg | 50 kg |
| Electrical Requirement | AC 220±22V 50/60Hz 5A | AC 220±22V 50Hz 10A | ||
| Catalogue No. | 1401550502 | 1401551002 | 1401551502 | 1401552002 |
