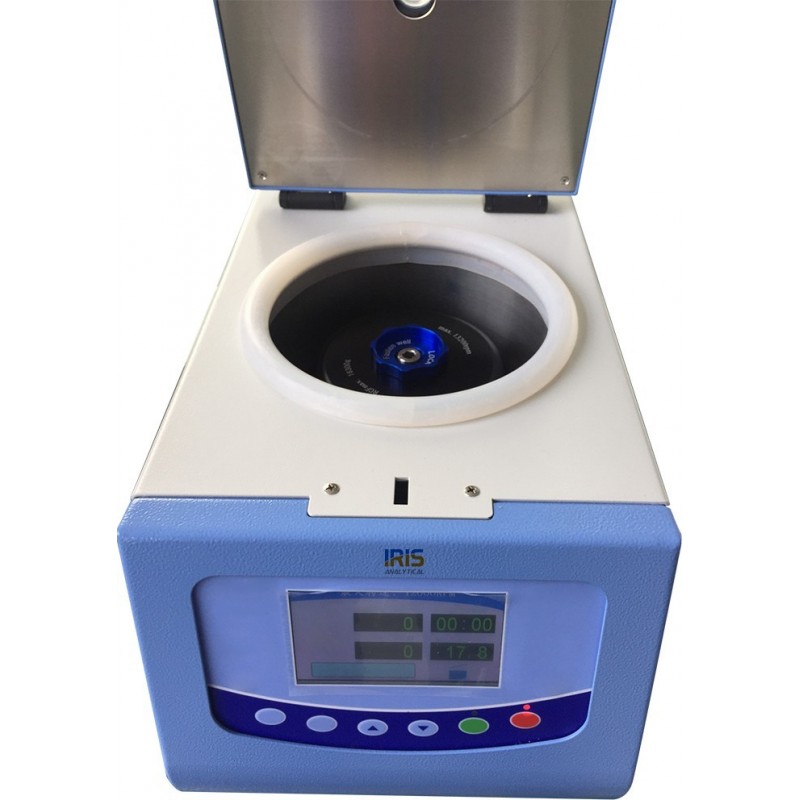

Microcentrifuge IBMC-3017(110/50Hz)

Microcentrifuge IBMC-3017 is ISO9001, CE, and FDA certify programmable micro refrigerated centrifuge and ideal for collecting microorganisms, cell debris, cells, large organelles, sulphate precipitates, and immune deposits, etc. small footprint of capacity up to 1.5ml/2.2ml×36 with maximum speed ranging 17000 rpm.

Share

Microcentrifuge IBMC-3017 is ISO9001, CE, and FDA certify programmable micro refrigerated centrifuge and ideal for collecting microorganisms, cell debris, cells, large organelles, sulphate precipitates, and immune deposits, etc. small footprint of capacity up to 1.5ml/2.2ml×36 with maximum speed ranging 17000 rpm. Microcomputer control, DC brushless motor. Features with LCD touch screen with multi-functional knob combination parameters. Available with 9 profiles for acceleration and for deceleration with high efficiency. For safety we introduced electronic door lock function and, imbalance detection, over-speed protection, inching function, short-spin function.

Accessories

Rotors

Model

IBMC-3015

Rotor

Rotor 1:1.5/2.2ml×12; 16500rpm;18360×g

Rotor 2:5ml×12; 12000rpm;10142×g

Rotor 3:1.5/2.2ml×24;15000rpm;21530×g

Rotor 4:1.5/2.2ml×36; 11000rpm;10790×g

Rotor 5: 0.5ml×48; 12000rpm;10920×g

Rotor 6:0.2ml×8×3;15000rpm;13800×g

Rotor 7:0.5ml×18; 16000rpm;15300×g

140601001

Data sheet

Catalogue No.
140601001
Electrical Requirements
AC110/50Hz, 10A,
Shipping Dimensions (HxLxW) mm
400×660×400 mm
Net Weight (kg)
30 kg
External Dimemsions (HxLxW) mm
280×540×300 mm
Certifications/Compliance
ISO9001, CE, and FDA
Timer
1min to 99h, 59min
Display
LCD
Capacity
1.5ml/2.2ml×36
Max RCF
21532×g
Speed Range (rpm)
17000 rpm
Model
IBMC-3017
Product Type
Micro Centrifuge
  • Display LCD screen and touch panel
  • DC brushless motor
  • ISO9001, CE, and FDA certify
  • Great speed accuracy
  • Low noise: <65dB(A)
  • Constant operation
  • Easy, convenient and programmable operations
  • Automatic storage of data
  • Real time conversation of speed and RCF is suitable for operation
  • Equipped with self-locking device
  • Automatic alarm device
  • Over speed safety device
  • User friendly interface

Model

IBMC-3015

IBMC-3017

Capacity

36x1.5 ml/2.2ml

1.5ml/2.2ml×36

Max Speed

16500 rpm

17000 rpm

Max RCF

21532×g

21532×g

Revolution/rpm

± 30rpm

Noise

<65dB(A)

Time Setting

1min to 99h, 59min

Certification

ISO9001, CE, and FDA

Display

LCD

Power Consumption





Dimension

280×540×300 mm

Packing Size

400×660×400 mm

480×670×585 mm

Weight

30 kg

Electrical Requirement

AC110/50Hz, 10A,

220V/60Hz, 10A

AC110/60Hz,

220V/50Hz

Catalogue No.

140600501

140600502

140601001

140601002

Model

IBMC-3015

IBMC-3017

Capacity

36x1.5 ml/2.2ml

1.5ml/2.2ml×36

Max Speed

21532×g

21532×g

Max RCF

16500 rpm

17000 rpm

Revolution/rpm

± 30rpm

Noise

<65dB(A)

Time Setting

1min to 99h, 59min

Certification

ISO9001, CE, and FDA

Display

LCD

Dimension

280×540×300 mm

Packing Size

400×660×400 mm

480×670×585 mm

Weight

30 kg

Electrical Requirement

AC110/50Hz, 10A,

220V/60Hz, 10A

AC110/60Hz,

220V/50Hz

Catalogue No.

140600501

140600502

140601001

140601002

Model Image Name Product Detail Availability Price Action
140600501 Angle Rotor 1 Angle Rotor 1

1.5/2.2ml×12; 16500rpm; 18360×g

3-4 Weeks

Price On Request
140600501 Angle Rotor 2 Angle Rotor 2

5ml×12; 12000rpm;10142×g

3-4 Weeks

Price On Request
140600501 Angle Rotor 3 Angle Rotor 3

1.5/2.2ml×24;15000rpm;21530×g

3-4 Weeks

Price On Request
140600501 Angle Rotor 4 Angle Rotor 4

1.5/2.2ml×36; 11000rpm;10790×g

3-4 Weeks

Price On Request
140600501 Angle Rotor 5 Angle Rotor 5

0.5ml×48; 12000rpm;10920×g

3-4 Weeks

Price On Request
140600501 Angle Rotor 6 Angle Rotor 6

0.2ml×8×3;15000rpm;13800×g

3-4 Weeks

Price On Request
140600501 Angle Rotor 7 Angle Rotor 7

0.5ml×18; 16000rpm;15300×g

3-4 Weeks

Price On Request
