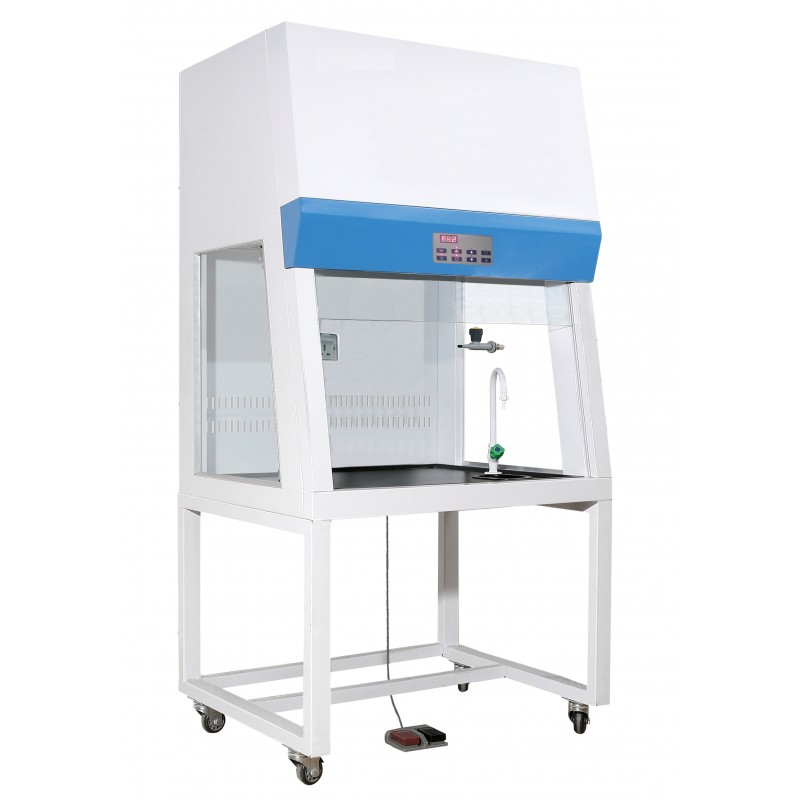

Fume Hood FHS-1700
$3,100.00
Fume Hood FHS-1700 is used to protect lab environment and operator during general chemical applications. It actively protects operator from inhaling toxic vapours and dramatically reduces the risk of fire and explosion. By installing proper filter, it can also protect environment.
Fume Hood FHS-1700 is used to protect lab environment and operator during general chemical applications. It actively protects operator from inhaling toxic vapours and dramatically reduces the risk of fire and explosion. By installing proper filter, it can also protect environment.
- UV lamp for sterilization.
- Motorized front glass window.
- Adjustable air speed: 9 levels.
- Alarm when filter working time 3500 hours.
- With air velocity memory function in case of power failure.
- Back side air compensation, to avoid turbulence in work area.
- 10°slope front ergonomics design, fatigue-free working posture.
- Microprocessor control system, LED display shows filter working time .
- Transparent side glass windows maximize light and visibility inside the cabinet, providing a bright and open working environment.
LED Display:
Digital LED display:Airflow Level
Water & Gas Tap, Water Sink
Foot switch
Use foot switch to adjust the height of front window
Observation Window
Transparent side glass windows maximize light and visibility inside the cabinet
Back Side Air Compensation
To avoid turbulence in work area
FHS-1700
Data sheet
- External Size (W*D*H) cm
- 1500*840*2150mm
- Max Opening (cm)
- 520mm
- Model
- FHS-1700
- Internal Size （W*D*H） mm
- 1380*730*745mm
- Capacity (liters)
- 750
- Front Window
- Motorized; 5 mm toughened glass, anti-UV
- Display
- LCD Display
- Noise
- ≤60dB
- UV Lamp
- Emission of 253.7 nanometers for most efficient decontamination
- Work Surface Height
- 750mm
- Fluorescent Lamp
- 36W*1
- Power Supply
- 220V/ 50Hz; 220V/ 60Hz; 110V/60Hz
- Gross Weight
- 280kg
- Exhaust Blower
- Built-in centrifugal blowers; Speed adjustable with 9 levels
- Electrical Requirements
- 220V/50Hz
- Material
- Exterior Body: Cold-rolled steel with anti-bacteria powder coating.Work table: Solid chemical-resistant phenolic resin
- Standard Accessories
- Water tap; Gas tap; Water sink; Base stand,UV lamp*2, Fluorescent lamp, One waterproof socket not more than 500W4 meters exhaust ductActive carbon filterFoot switch
- Consumption
- 500W
- Shipping Dimensions (W*D*H) cm
- 1650*1120*1680mm
- Airflow Velocity (m/s)
- 0.3~0.8m/s
- UV lamp for sterilization.
- Motorized front glass window.
- Adjustable air speed: 9 levels.
- Alarm when filter working time 3500 hours.
- With air velocity memory function in case of power failure.
- Back side air compensation, to avoid turbulence in work area.
- 10°slope front ergonomics design, fatigue-free working posture.
- Microprocessor control system, LED display shows filter working time .
- Transparent side glass windows maximize light and visibility inside the cabinet, providing a bright and open working environment.
| Model | FHS-1400 | FHS-1500 | FHS-1700 | FHS-1900 | ||||
| External Size (W*D*H) | 1000*840*2150mm | 1200*840*2150mm | 1500*840*2150mm | 1800*840*2150mm | ||||
| Internal Size (W*D*H) | 880*730*745mm | 1080*730*745mm | 1380*730*745mm | 1680*730*745mm | ||||
| Capacity (liters) | 478 | 587 | 750 | 913 | ||||
| Max Opening | 520mm | |||||||
| Work Surface Height | 750mm | |||||||
| Blower | Built-in centrifugal blowers; Speed adjustable with 9 levels | |||||||
| Air Velocity | 0.3~0.8m/s | |||||||
| Noise | ?60dB | |||||||
| Fluorescent Lamp | 18W*1 | 18W*1 | 36W*1 | 36W*1 | ||||
| UV Lamp | Emission of 253.7 nanometers for most efficient decontamination | |||||||
| Front Window | Motorized;5 mm toughened glass, anti-UV | |||||||
| Material | Exterior Body: Cold-rolled steel with anti-bacteria powder coating. | |||||||
| Work table: Solid chemical-resistant phenolic resin | ||||||||
| Power Supply | 220V/ 50Hz; 220V/ 60Hz; 110V/60Hz | |||||||
| Consumption | 400W | 400W | 500W | 500W | ||||
| Standard Accessory | Water tap; Gas tap; Water sink; Base stand,UV lamp*2, Fluorescent lamp | |||||||
| FH1000(X) with one waterproof socket not more than 500W, the other model with two waterproof sockets not more than 500W | ||||||||
| 4 meters exhaust duct | ||||||||
| Active carbon filter | ||||||||
| Foot switch | ||||||||
| Gross Weight | 230kg | 253kg | 280kg | 340kg | ||||
| Package Size(W*D*H? | 1230*1120*1680 mm | 1350*1120*1680mm | 1650*1120*1680mm | 1950*1120*1680mm | ||||
| Electrical Requirement | 110V | 220V | 110V | 220V | 110V | 220V | 110V | 220V |
