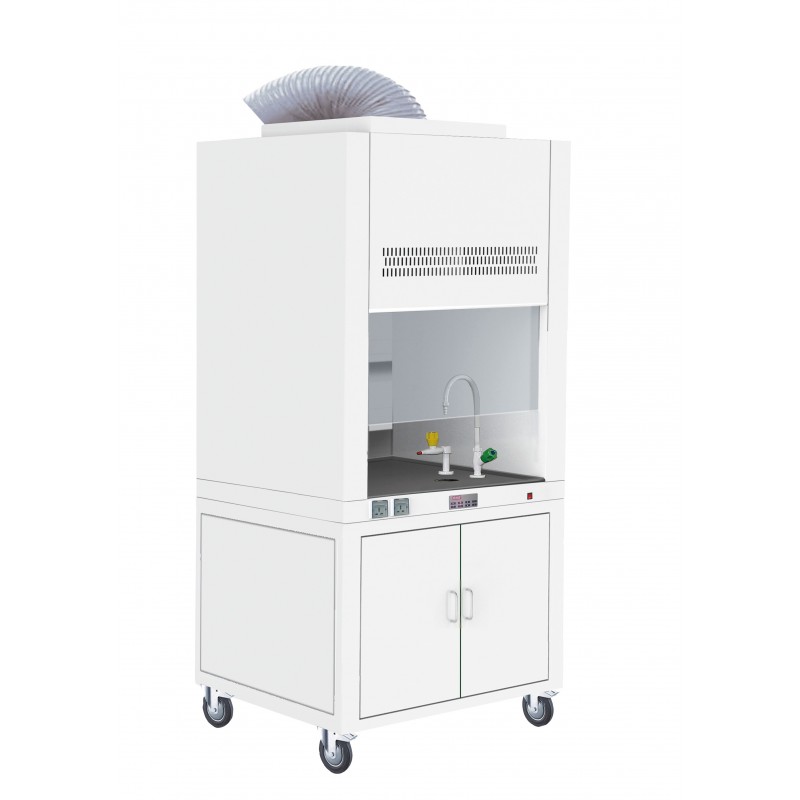

Fume Hood FHT-1500
$2,700.00
The FHT-1500 Fume Hood is used to protect lab environment and operator during general chemical applications. It actively protects operator from inhaling toxic vapors and dramatically reduces the risk of fire and explosion. By installing proper filter, it can also protect environment.
The FHT-1500 Fume Hood is used to protect lab environment and operator during general chemical applications. It actively protects operator from inhaling toxic vapors and dramatically reduces the risk of fire and explosion. By installing proper filter, it can also protect environment.
- UV lamp for sterilization.
- Built-in centrifugal blower.
- Motorized front glass window.
- Adjustable air speed: 9 levels.
- Microprocessor control system, LED display.
- Double-layer structure: 1.2 mm sheet metal surface, melamine board inward.
LED Display:
Digital LED display: Airflow Level
Water & Gas Tap Water Sink
UV Lamp
Emission of 253.7 Nanometers for most efficient decontamination.
Double Layers
1.2mm sheet metal surface, melamine board inward.
FHT-1500
Data sheet
- External Size (W*D*H) cm
- 1200*800*2345mm
- Max Opening (cm)
- 570mm
- Model
- FHT-1300
- Internal Size （W*D*H） mm
- 1020*670*750mm
- Capacity (liters)
- 510
- Front Window
- 5mm toughened glass; Motorized; Height adjustable
- Display
- LED Display
- Noise
- ≤60dB
- UV Lamp
- Emission of 253.7 nanometers for most efficient decontamination
- Work Surface Height
- 850mm
- Fluorescent Lamp
- 21W*1
- Power Supply
- 220V/ 50Hz; 220V/ 60Hz; 110V/60Hz
- Gross Weight
- 302kg
- Exhaust Blower
- Built-in centrifugal blower; Speed adjustable
- Electrical Requirements
- 220V/50Hz
- Exhaust Duct
- Φ300mm PVC, Standard length: 4 meters
- Material
- Exterior: Cold-rolled steel with anti-bacteria powder coating.
Interior: High grade melamine board with good acid and alkali resistance function
Work Table: Solid chemical resistant phenolic resin - Standard Accessories
- UV lamp*2, Fluorescent lamp, Water tap, Gas tap, Water sink, Base cabinet, Pipe strap.
Total load of 2 waterproof sockets: 500W
4 meters PVC exhaust duct - Consumption
- 400W
- Shipping Dimensions (W*D*H) cm
- Main Body: 1350*950*1920mm
Base Cabinet: 1350*950*900mm - Airflow Velocity (m/s)
- 0.3~0.8m/s
- Operators are available to walk into the fume hood to operator if needed.
- Large room exhaust system, suitable for large laboratory instruments and equipment.
Model | FHT-1300 | FHT-1500 | FHT-1600 | FHT-1800 | |||||
External Size (W*D*H) mm | 1000*750*2320mm | 1200*800*2345mm | 1500*800*2345mm | 1800*800*2345mm | |||||
Internal Size (W*D*H) mm | 820*620*750mm | 1020*670*750mm | 1320*670*750mm | 1620*670*750mm | |||||
Capacity (liters) | 381 | 512 | 663 | 814 | |||||
Work Surface Height | 850mm | ||||||||
Max Opening | 520mm | 570mm | 570mm | 570mm | |||||
Air Velocity | 0.3~0.8m/s | ||||||||
Protection Class | Class I | ||||||||
Protection Type | IP 20 | ||||||||
Noise | ?60dB | ||||||||
Exhaust Duct | PVC, Standard length: 4 meters. | ||||||||
?300mm | |||||||||
Pipe Strap | 1 pc | ||||||||
Fluorescent Lamp | 14W*1 | 21W*1 | 28W*1 | 36W*1 | |||||
UV Lamp | Emission of 253.7 nanometers for most efficient decontamination | ||||||||
Blower | Built-in centrifugal blower; Speed adjustable. | ||||||||
Front Window | 5mm toughened glass; Motorized; Height adjustable. | ||||||||
Power Supply | 220V/ 50Hz; 220V/ 60Hz; 110V/60Hz | ||||||||
Consumption | 400W | 400W | 500W | 500W | |||||
Material | Exterior | Cold-rolled steel with anti-bacteria powder coating. | |||||||
Interior | High grade melamine board with good acid and alkali resistance function | ||||||||
Work table | Solid chemical resistant phenolic resin | ||||||||
Standard Accessories | UV lamp*2, Fluorescent lamp, Water tap, Gas tap, Water sink, Base cabinet, Pipe strap. | ||||||||
Total load of 2 waterproof sockets: 500W | |||||||||
4 meters PVC exhaust duct | |||||||||
Optional Accessories | Active carbon filter | ||||||||
Gross Weight (kg) | 272kg | 302kg | 331kg | 366kg | |||||
Package Dimensions (mm) | Main Body | 1150*900*1870 mm | 1350*950*1920mm | 1650*950*1890mm | 1950*950*1900mm | ||||
Base Cabinet | 1150*900*960mm | 1350*950*900mm | 1650*960*910mm | 1950*960*910mm | |||||
Electrical Requirements | 110V | 220V | 110V | 220V | 110V | 220V | 110V | 220V | |
Catalogue No. |
|
|
|
|
|
|
|
| |
| Model | FHT-1300 | FHT-1500 | FHT-1600 | FHT-1800 | |||||
| External Size (W*D*H) mm | 1000*750*2320mm | 1200*800*2345mm | 1500*800*2345mm | 1800*800*2345mm | |||||
| Internal Size (W*D*H) mm | 820*620*750mm | 1020*670*750mm | 1320*670*750mm | 1620*670*750mm | |||||
| Internal Size (W*D*H) mm | 381 | 512 | 663 | 814 | |||||
| Work Surface Height (mm) | 850mm | ||||||||
| Max Opening (mm) | 520mm | 570mm | 570mm | 570mm | |||||
| Air Velocity (m/s) | 0.3~0.8m/s | ||||||||
| Protection Class | Class I | ||||||||
| Protection Type | IP 20 | ||||||||
| Noise | ?60dB | ||||||||
| Exhaust Duct | PVC, Standard length: 4 meters. | ||||||||
| ?300mm | |||||||||
| Pipe Strap | 1 pc | ||||||||
| Fluorescent Lamp | 14W*1 | 21W*1 | 28W*1 | 36W*1 | |||||
| UV Lamp | Emission of 253.7 nanometers for most efficient decontamination | ||||||||
| Blower | Built-in centrifugal blower; Speed adjustable. | ||||||||
| Front Window | 5mm toughened glass; Motorized; Height adjustable. | ||||||||
| Power Supply | 220V/ 50Hz; 220V/ 60Hz; 110V/60Hz | ||||||||
| Consumption | 400W | 400W | 500W | 500W | |||||
| Material | Exterior | Cold-rolled steel with anti-bacteria powder coating. | |||||||
| Interior | High grade melamine board with good acid and alkali resistance function | ||||||||
| Work table | Solid chemical resistant phenolic resin | ||||||||
| Standard Accessories | UV lamp*2, Fluorescent lamp, Water tap, Gas tap, Water sink, Base cabinet, Pipe strap. | ||||||||
| Total load of 2 waterproof sockets: 500W | |||||||||
| 4 meters PVC exhaust duct | |||||||||
| Optional Accessories | Active carbon filter | ||||||||
| Gross Weight (kg) | 272kg | 302kg | 331kg | 366kg | |||||
| Package Dimensions (mm) | Main Body | 1150*900*1870 mm | 1350*950*1920mm | 1650*950*1890mm | 1950*950*1900mm | ||||
| Base Cabinet | 1150*900*960mm | 1350*950*900mm | 1650*960*910mm | 1950*960*910mm | |||||
| Electrical Requirements | 110V | 220V | 110V | 220V | 110V | 220V | 110V | 220V | |
| Catalogue No. |
|
|
|
|
|
|
|
| |
| Model | Image | Name | Product Detail | Availability | Price | Action |
|
Water & Gas Tap, Water Sink for Fume Hoods |
Water & Gas Tap, Water Sink |
Price On Request |
|
||
|
Foot switch for Fume Hoods |
Use foot switch to adjust the height of front window |
Price On Request |
|
||
|
Observation Window for Fume Hoods |
Transparent side glass windows maximize light and visibility inside the cabinet |
Price On Request |
|
||
|
Back Side Air Compensation for Fume Hoods |
Back Side Air Compensation: To avoid turbulence in work area |
Price On Request |
|
||
|
Water & Gas Remote Control for Fume Hoods |
Water & Gas Remote Control |
Price On Request |
|
||
|
Water Sink for Fume Hoods |
Water Sink |
Price On Request |
|
||
|
Waterproof Socket for Fume Hoods |
Waterproof Socket |
Price On Request |
|
||
|
UV Lamp for Fume Hoods |
UV Lamp |
Price On Request |
|
||
|
PP Sink for Fume Hoods |
PP sink |
Price On Request |
|
Download Catalog
