Gemological Microscope IGM-1250 is used to examine diamonds, emeralds, rubies and all other types of precious stones. Available in binocular and trinocular form for the capture of the gem provides you with an opportunity for extra revenue. Designed with 3 different types of illumination making it a very flexible stereomicroscope including Fluorescent lamp, LED, and Halogen illumination. These microscopes ensure good status for having outstanding optics, rugged dependability, flexibility and low-cost to perform identifications, analyses, and measurements more accurately and efficiently, thus reducing your workload. At a working distance of 115 mm with a 1:6.3 zooms ratio. Ideal for working with subtle jewelry, gemstones and used in the design, creation, production, and repair of jewelry under high magnification 0.8X-5X to provide quality image.
Data sheet
Technical Specifications
Model | IGM-1200 | IGM-1250 | IGM-1260 |
Type | Gemological Microscope | ||
Magnification | 0.8X-5X | ||
Viewing Head | Binocular Viewing Head, Inclined at 45°, Interpupilary Distance: 55-75mm | Trinocular Viewing Head, Inclined at 45°, Interpupilary Distance: 55-75mm | Binocular Digital Viewing Head, Inclined at 45°, Interpupilary Distance: 55-75mm |
Digital System | - | Resolution: 2048×1536(, 3.2MP) | |
Focusing | 110 mm for observing different size gem and sample | ||
Eyepiece | WF15X16 mm with diopter adjustment (optional: WF10X22mm, WF20X12mm, WF30X9mm) | ||
Zoom Ratio | 1:6.3, 115 mm | ||
Objective | optional: Auxiliary Objective 0.5X220 mm, 0.7X125 mm, 2X125 mm | ||
Stage | 0°-325° Rotatable base and stand 0-38° Inclined, so the height and angle of eyepiece can be adjusted, easy to operate and a gem clamp fixing of both side | ||
Light Source | 9W Fluorescent lamp, LED Point Light, 6V/20W Halogen illumination | ||
Gem Clamp | High quality steel clamp is perfect to hold the gem for observation from all directions | ||
Packing Dimension |
|
|
|
Packing Weight |
|
|
|
Electrical Requirement |
|
|
|
Catalogue No. | 440320-05-04 | 440320-10-04 | 440320-15-04 |
| Model | IGM-1200 | IGM-1250 | IGM-1260 |
| Type | Gemological Microscope | ||
| Magnification | 0.8X-5X | ||
| Viewing Head | Binocular Viewing Head, Inclined at 45°, Interpupilary Distance: 55-75mm | Trinocular Viewing Head, Inclined at 45°, Interpupilary Distance: 55-75mm | Binocular Digital Viewing Head, Inclined at 45°, Interpupilary Distance: 55-75mm |
| Digital System | - | Resolution: 2048×1536(, 3.2MP) | |
| Focusing | 110 mm for observing different size gem and sample | ||
| Eyepiece | WF15X16 mm with diopter adjustment (optional: WF10X22mm, WF20X12mm, WF30X9mm) | ||
| Zoom Ratio | 1:6.3, 115 mm | ||
| Objective | optional: Auxiliary Objective 0.5X220 mm, 0.7X125 mm, 2X125 mm | ||
| Stage | 0°-325° Rotatable base and stand 0-38° Inclined, so the height and angle of eyepiece can be adjusted, easy to operate and a gem clamp fixing of both side | ||
| Light Source | 9W Fluorescent lamp, LED Point Light, 6V/20W Halogen illumination | ||
| Gem Clamp | High quality steel clamp is perfect to hold the gem for observation from all directions | ||
| Catalogue No. | 440320-05-04 | 440320-10-04 | 440320-15-04 |
Polarizing Microscope IMP-1401 equipped with a high degree of sensitivity and best suited for anisotropic (mineral) specimens such as geology, minerals, metallurgy, university teaching laboratories, and other sectors.
Stereo Microscope IMS-1420 suitable for school education, circuit board inspection, and repair, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, inspection and repair of small parts.

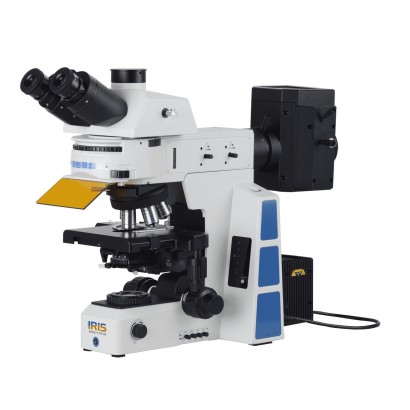

Fluorescent Microscope IMF-1580 is used to study the absorbing, transportation, chemicals distribution and positioning in cells. It is widely used in disease examination, immune diagnosis and life science areas.
