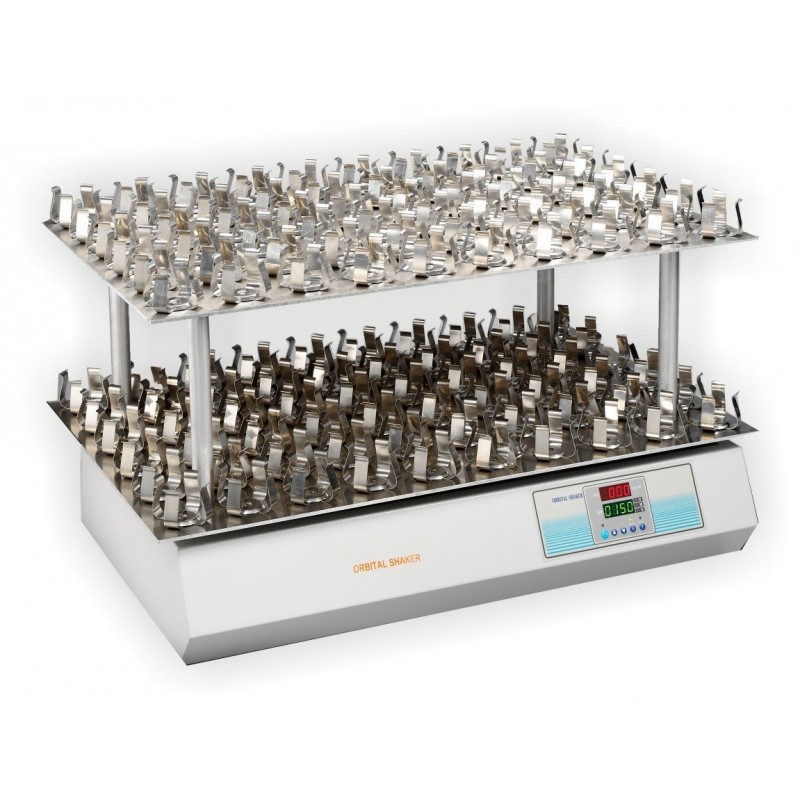

The Double Platform Orbital Shaker OS-1600D is designed with microprocessor PID control enabling reproducible results every time. The Iris OS-1400D Double Platform Orbital Shakers are fully adaptable to almost any laboratory applications for any type and size of vessel. The user-friendly touch screen control panel is easy to read with a bright clear digital display.
The OS-1600D Double Platform Orbital Shaker is designed with microprocessor PID control enabling reproducible results every time. Iris OS-1000 Orbital Shakers are fully adaptable to almost any laboratory applications for any type and size of vessel. The user-friendly touch screen control panel is easy to read with a bright clear digital display.
Maintenance-free motor generates smooth and powerful shaking motion over a wide speed range and under heavy workloads. Built-in protection system from over-current, stalled platform, and audible/visible alarms for shaking speed deviation keep the unit worry free. RS-232 and USB ports provide option for external control and data collection. Additional features include intuitive controls, a robust construction in a compact, space-saving design and smooth running conditions with variable speeds. The OS-1600 laboratory orbital shakers allow for safe, efficient and easy-to-use operation while reproducing accurate, controlled speeds with every use.
Applicable for fermentation processes with high demands on the precision of the shaking frequency, bacteria incubation, hybridization, life science, pharmacy, medical science, food industry, chemistry, biology, and other laboratory environments.
Data sheet
| Model | OS-1400D | OS-1600D | OS-1900D | |||
| Control Panel | Digital | |||||
| Shaking Speed | 20~150 r.p.m | |||||
| Shaking Width | 25mm | |||||
| Timer | 999 h / 999 min / 999 sec | |||||
| Shaking Plate | 400 x 300 (2pcs) | 580 x 460 (2pcs) | 960 x 600 (2pcs) | |||
| Outside Dimension (WxDxH) mm | 400 x 300 x 500 mm | 600 x 480 x 500 mm | 960 x 600 x 500 mm | |||
| Net Weight (kg) | 20kg | 60kg | 107kg | |||
| Gross Weight (kg) |
|
|
| |||
| Shipping Weight (kg) |
|
|
| |||
| Shipping Dimensions (mm) |
|
|
| |||
| Electrical Requirements | 110V/60Hz | 220V/50Hz | 110V/60Hz | 220V/50Hz | 110V/60Hz | 220V/50Hz |
| Catalogue No. | 5401005-1 | 5401005-2 | 5401010-1 | 5401010-2 | 5401015-1 | 5401015-2 |
Flask Capacity:
| Flask Clamp | 125ml | 250ml | 500ml |
| TS-525D | 40 | 24 | 12 |
| TS-565D | 96 | 60 | 40 |
| TS-585D | 192 | 120 | 80 |
