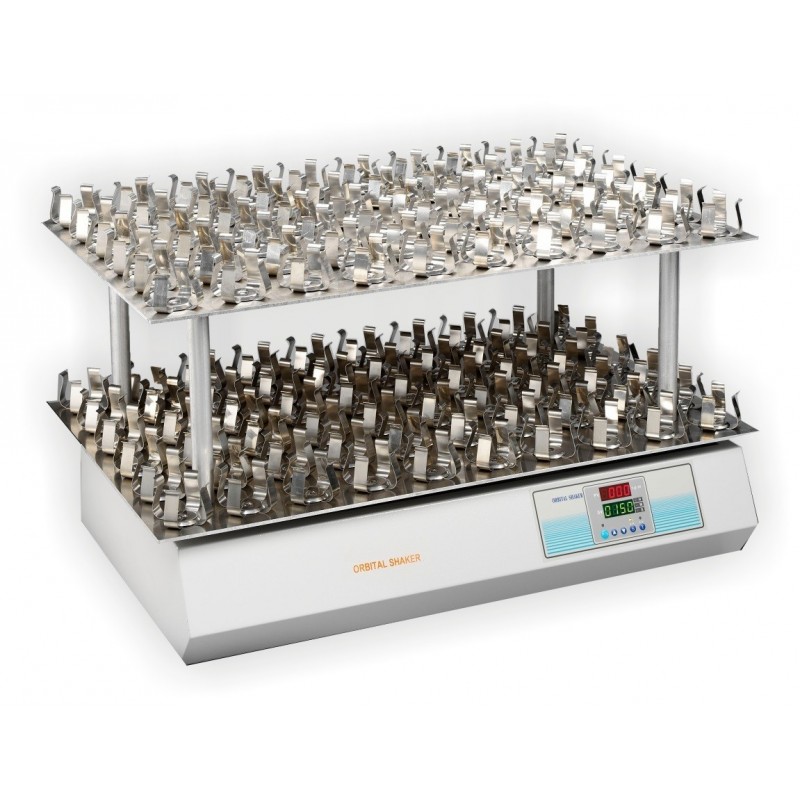

Double Platform Orbital Shaker OS-1900D, 110V/60Hz
$4,821.00
The Double Platform Orbital Shaker OS-1900D is designed with microprocessor PID control enabling reproducible results every time. The Iris OS-1900D Double Platform Orbital Shakers are fully adaptable to almost any laboratory applications for any type and size of vessel. The user-friendly touch screen control panel is easy to read with a bright clear digital display.
The OS-1900D Double Platform Orbital Shaker is designed with microprocessor PID control enabling reproducible results every time. Iris OS-1900D Orbital Shakers are fully adaptable to almost any laboratory applications for any type and size of vessel. The user-friendly touch screen control panel is easy to read with a bright clear digital display.
Maintenance-free motor generates smooth and powerful shaking motion over a wide speed range and under heavy workloads. Built-in protection system from over-current, stalled platform, and audible/visible alarms for shaking speed deviation keep the unit worry free. RS-232 and USB ports provide option for external control and data collection. Additional features include intuitive controls, a robust construction in a compact, space-saving design and smooth running conditions with variable speeds. The OS-1900D laboratory orbital shakers allow for safe, efficient and easy-to-use operation while reproducing accurate, controlled speeds with every use.
Applicable for fermentation processes with high demands on the precision of the shaking frequency, bacteria incubation, hybridization, life science, pharmacy, medical science, food industry, chemistry, biology, and other laboratory environments.
- Touch-screen panel.
- LED 2-screen digital display
- Actual and setting speed
- Shaking smoothly and quietly
- Suitable for carrying heavy duty
- With variable speed, timer control and continuous operation
- Memory of power cut, uses brushless AC motor
- Differential clamps available
- Double platform for large capacity
OS-1900D
Data sheet
- Timer
- 999 h / 999 min / 999 sec
- Catalogue No.
- 5401015-1
- Electrical Requirements
- 110V/60Hz
- Net Weight (kg)
- 107 kg
- External Dimensions (WxDxH) mm
- 960 x 600 x 500 mm
- Shaker Controller
- Microprocessor Digital LED
- Platform Size (mm)
- 960 x 600 (2 pieces)
- Vibration Style
- Orbital
- Display and Control
- Digital LED Display / Touch Screen Control Panel
- Model
- OS-1900D
- Shaking Width (mm)
- 25 mm
- Speed Setting
- Digital
- Speed Controller
- Microprocessor Controlled
- Speed Display
- Digital LED
- Shaking Plate
- 960 x 600 mm
- Touch-screen panel
- 2 LED screen digital display
- Actual and setting speed
- Digital speed controller and timer
- Quite and smooth Shaking
- Suitable for carrying heavy load
- Memory of power cut
- Brushless AC motor
- Platform can accommodate a mix of flask clamp
- Double platform for large capacity
Model | OS-3050 | OS-3050R | OS-3100 | OS-3150 | OS-3200 | |||||
Display and Control | LED Digital Display / On-Touch Control | LED Digital Display / On-Touch Control | LED Digital Display / On-Touch Control | LED Digital Display / On-Touch Control | LED Digital Display / On-Touch Control | |||||
Vibration Style | Orbital | Reciprocating | Orbital/Reciprocating | Orbital/Reciprocating | Orbital/Reciprocating | |||||
Speed Range (rpm) | 10 - 250 | 10 - 250 | 10 - 300 | 10 - 300 | 10 - 300 | |||||
Speed Accuracy (rpm) | ±2 (at 100rpm) | ±2 (at 100rpm) | ±1rpm | ±1rpm | ±1rpm | |||||
Amplitude of Vibration ( mm) | 20 (10 to 400rpm/14mm?10 to 500rpm/8mm Available) | 20 (10 to 400rpm/14mm?10 to 500rpm/8mm Available) | 30 (Standard); 20, 40 (Optional) | 30 (Standard); 20, 40 (Optional) | 30 (Standard); 20, 40 (Optional) | |||||
Speed Adjustment Steps (rpm) | ± 1 | ± 1 | ± 1 | ± 1 | ± 1 | |||||
Maximum Timer Length (min) | Delay On / Off Time : 1min to 999hr 59min
Forward & Backward, Pause : 10sec to 59min 59 sec | Delay On / Off Time : 1min to 999hr 59min
Forward & Backward, Pause : 10sec to 59min 59 sec | 999 hr 59 min; Pause: Max. 99 min, Min. 1 min; Forward-and-backward: Max. 9 min 50 sec, Min. 10 sec | 999 hr 59 min; Pause: Max. 99 min, Min. 1 min; Forward-and-backward: Max. 9 min 50 sec, Min. 10 sec | 999 hr 59 min; Pause: Max. 99 min, Min. 1 min; Forward-and-backward: Max. 9 min 50 sec, Min. 10 sec | |||||
Material | Host: stainless steel Working Plate: Aluminium | Host: stainless steel Working Plate: Aluminium | Host: stainless steel Working Plate: Aluminium | Host: stainless steel Working Plate: Aluminium | Host: stainless steel Working Plate: Aluminium | |||||
Maximum Load (including clamps) (kg) | 15 | 15 | 7.5 | 15 | 30 | |||||
Motor Input / Output power (W) | 45 / 10 | 70 / 19 | 140 / 38 | |||||||
Working Plate Dimension(W × D in mm) | 320 × 260 | 320 × 260 | 350 × 350 | 450 × 450 | 755 × 481 | |||||
Outside Dimension(W × D × H in mm) | 355x375x140(mm) | 355x375x140(mm) | 410 × 490 × 160 | 510 × 595 × 160 | 820 × 610 × 152 | |||||
Accessories | Carrier with Flexible Attachments , Carrier with Fixed Attachments, Carrier with Rubber Plate | |||||||||
Gross Weight (kg) | ||||||||||
Shipping Weight (kg) | ||||||||||
Shipping Dimensions (mm) | ||||||||||
Electrical Requirements | 110V/60Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | 110V/60Hz | 220V/50Hz | 110V/60Hz | 220V/50Hz | 110V/60Hz | 220V/50Hz |
Catalogue No. | 5401505-1 | 5401505-2 | 5401510-1 | 5401510-2 | 5401515-1 | 5401515-2 | 5401520-1 | 5401520-2 | 5401525-1 | 5401525-2 |
| Model | OS-1400D | OS-1600D | OS-1900D | |||
| Control Panel | Digital | |||||
| Shaking Speed | 20~150 r.p.m | |||||
| Shaking Width | 25mm | |||||
| Timer | 999 h / 999 min / 999 sec | |||||
| Shaking Plate | 400 x 300 (2pcs) | 580 x 460 (2pcs) | 960 x 600 (2pcs) | |||
| Outside Dimension (WxDxH) mm | 400 x 300 x 500 mm | 600 x 480 x 500 mm | 960 x 600 x 500 mm | |||
| Net Weight (kg) | 20kg | 60kg | 107kg | |||
| Gross Weight (kg) |
|
|
| |||
| Shipping Weight (kg) |
|
|
| |||
| Shipping Dimensions (mm) |
|
|
| |||
| Electrical Requirements | 110V/60Hz | 220V/50Hz | 110V/60Hz | 220V/50Hz | 110V/60Hz | 220V/50Hz |
| Catalogue No. | 5401005-1 | 5401005-2 | 5401010-1 | 5401010-2 | 5401015-1 | 5401015-2 |
Flask Capacity:
| Flask Clamp | 125ml | 250ml | 500ml |
| TS-525D | 40 | 24 | 12 |
| TS-565D | 96 | 60 | 40 |
| TS-585D | 192 | 120 | 80 |
| Model | Image | Name | Product Detail | Availability | Price | Action |
| 54010A01 |
|
Stainless steel clamp for 50ml Erlenmeyer flask |
Stainless steel clamp for 50ml Erlenmeyer flask |
Price On Request |
|
|
| 54010A02 |
|
Stainless steel clamp for 125ml Erlenmeyer flask |
Stainless steel clamp for 125ml Erlenmeyer flask |
Price On Request |
|
|
| 54010A03 |
|
Stainless steel clamp for 250ml Erlenmeyer flask |
Stainless steel clamp for 250ml Erlenmeyer flask |
Price On Request |
|
|
| 54010A04 |
|
Stainless steel clamp for 500ml Erlenmeyer flask |
Stainless steel clamp for 500ml Erlenmeyer flask |
Price On Request |
|
|
| 54010A05 |
|
Stainless steel clamp for 1000ml Erlenmeyer flask |
Stainless steel clamp for 1000ml Erlenmeyer flask |
Price On Request |
|
|
| 54010A06 |
|
Stainless steel clamp for 2000ml Erlenmeyer flask |
Stainless steel clamp for 2000ml Erlenmeyer flask |
Price On Request |
|
|
| 54010A07 |
|
Stainless steel clamp for 3000ml Erlenmeyer flask |
Stainless steel clamp for 3000ml Erlenmeyer flask |
Price On Request |
|
|
| 54010A08 |
|
Stainless steel clamp for 4000ml Erlenmeyer flask |
Stainless steel clamp for 4000ml Erlenmeyer flask |
Price On Request |
|
|
| 54010A09 |
|
Stainless steel clamp for 5000ml Erlenmeyer flask |
Stainless steel clamp for 5000ml Erlenmeyer flask |
Price On Request |
|
Download Catalog
