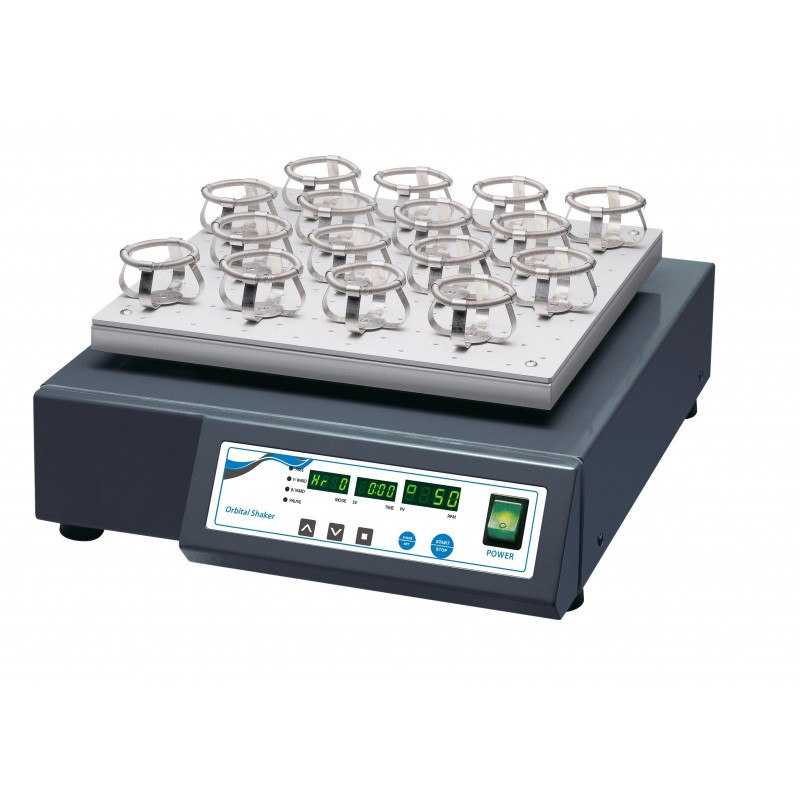

Iris orbital shakers feature a rectangular platform that moves in a circular motion to aerate samples. Additional features for all of these units include intuitive controls with a digital display, a robust construction in a compact, space-saving design and smooth running conditions with variable speeds.
Reciprocating/Orbital Shaker OS-3150 provide two different shaking functions: back and forth, and orbital. Adjustable shaking speed and range. Timer function for maximum flexibility.
Iris orbital shakers feature a rectangular platform that moves in a circular motion to aerate samples. Additional features for all of these units include intuitive controls with a digital display, a robust construction in a compact, space-saving design and smooth running conditions with variable speeds. Our laboratory shakers allow for safe, efficient and easy-to-use operation while reproducing accurate, controlled speeds with every use.
Multi-function Shaking System:
The OS-3150 shaker's intensive multifunction shaking system surpasses all previous levels of experience! You can multi-set the shaking motions in maximum six ways of Forward/ Backward/ Pause/ Mix & match upon your various laboratory purposes.
Data sheet
Model | OS-3050 | OS-3050R | OS-3100 | OS-3150 | OS-3200 | |||||
Display and Control | LED Digital Display / On-Touch Control | LED Digital Display / On-Touch Control | LED Digital Display / On-Touch Control | LED Digital Display / On-Touch Control | LED Digital Display / On-Touch Control | |||||
Vibration Style | Orbital | Reciprocating | Orbital/Reciprocating | Orbital/Reciprocating | Orbital/Reciprocating | |||||
Speed Range (rpm) | 10 - 250 | 10 - 250 | 10 - 300 | 10 - 300 | 10 - 300 | |||||
Speed Accuracy (rpm) | ±2 (at 100rpm) | ±2 (at 100rpm) | ±1rpm | ±1rpm | ±1rpm | |||||
Amplitude of Vibration ( mm) | 20 (10 to 400rpm/14mm?10 to 500rpm/8mm Available) | 20 (10 to 400rpm/14mm?10 to 500rpm/8mm Available) | 30 (Standard); 20, 40 (Optional) | 30 (Standard); 20, 40 (Optional) | 30 (Standard); 20, 40 (Optional) | |||||
Speed Adjustment Steps (rpm) | ± 1 | ± 1 | ± 1 | ± 1 | ± 1 | |||||
Maximum Timer Length (min) | Delay On / Off Time : 1min to 999hr 59min
Forward & Backward, Pause : 10sec to 59min 59 sec | Delay On / Off Time : 1min to 999hr 59min
Forward & Backward, Pause : 10sec to 59min 59 sec | 999 hr 59 min; Pause: Max. 99 min, Min. 1 min; Forward-and-backward: Max. 9 min 50 sec, Min. 10 sec | 999 hr 59 min; Pause: Max. 99 min, Min. 1 min; Forward-and-backward: Max. 9 min 50 sec, Min. 10 sec | 999 hr 59 min; Pause: Max. 99 min, Min. 1 min; Forward-and-backward: Max. 9 min 50 sec, Min. 10 sec | |||||
Material | Host: stainless steel Working Plate: Aluminium | Host: stainless steel Working Plate: Aluminium | Host: stainless steel Working Plate: Aluminium | Host: stainless steel Working Plate: Aluminium | Host: stainless steel Working Plate: Aluminium | |||||
Maximum Load (including clamps) (kg) | 15 | 15 | 7.5 | 15 | 30 | |||||
Motor Input / Output power (W) | 45 / 10 | 70 / 19 | 140 / 38 | |||||||
Working Plate Dimension(W × D in mm) | 320 × 260 | 320 × 260 | 350 × 350 | 450 × 450 | 755 × 481 | |||||
Outside Dimension(W × D × H in mm) | 355x375x140(mm) | 355x375x140(mm) | 410 × 490 × 160 | 510 × 595 × 160 | 820 × 610 × 152 | |||||
Accessories | Carrier with Flexible Attachments , Carrier with Fixed Attachments, Carrier with Rubber Plate | |||||||||
Gross Weight (kg) | ||||||||||
Shipping Weight (kg) | ||||||||||
Shipping Dimensions (mm) | ||||||||||
Electrical Requirements | 110V/60Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | 110V/60Hz | 220V/50Hz | 110V/60Hz | 220V/50Hz | 110V/60Hz | 220V/50Hz |
Catalogue No. | 5401505-1 | 5401505-2 | 5401510-1 | 5401510-2 | 5401515-1 | 5401515-2 | 5401520-1 | 5401520-2 | 5401525-1 | 5401525-2 |
| Model | OS-3050 | OS-3050R | OS-3100 | OS-3150 | OS-3200 | |||||
| Display and Control | LED Digital Display / On-Touch Control | LED Digital Display / On-Touch Control | LED Digital Display / On-Touch Control | LED Digital Display / On-Touch Control | LED Digital Display / On-Touch Control | |||||
| Vibration Style | Orbital | Reciprocating | Orbital/Reciprocating | Orbital/Reciprocating | Orbital/Reciprocating | |||||
| Speed Range (rpm) | 10 - 250 | 10 - 250 | 10 - 300 | 10 - 300 | 10 - 300 | |||||
| Speed Accuracy (rpm) | ±2 (at 100rpm) | ±2 (at 100rpm) | ±1rpm | ±1rpm | ±1rpm | |||||
| Amplitude of Vibration ( mm) | 20 (10 to 400rpm/14mm?10 to 500rpm/8mm Available) | 20 (10 to 400rpm/14mm?10 to 500rpm/8mm Available) | 30 (Standard); 20, 40 (Optional) | 30 (Standard); 20, 40 (Optional) | 30 (Standard); 20, 40 (Optional) | |||||
| Speed Adjustment Steps (rpm) | ± 1 | ± 1 | ± 1 | ± 1 | ± 1 | |||||
| Maximum Timer Length (min) | Delay On / Off Time : 1min to 999hr 59min
Forward & Backward, Pause : 10sec to 59min 59 sec | Delay On / Off Time : 1min to 999hr 59min
Forward & Backward, Pause : 10sec to 59min 59 sec | 999 hr 59 min; Pause: Max. 99 min, Min. 1 min; Forward-and-backward: Max. 9 min 50 sec, Min. 10 sec | 999 hr 59 min; Pause: Max. 99 min, Min. 1 min; Forward-and-backward: Max. 9 min 50 sec, Min. 10 sec | 999 hr 59 min; Pause: Max. 99 min, Min. 1 min; Forward-and-backward: Max. 9 min 50 sec, Min. 10 sec | |||||
| Material | Host: stainless steel Working Plate: Aluminium | Host: stainless steel Working Plate: Aluminium | Host: stainless steel Working Plate: Aluminium | Host: stainless steel Working Plate: Aluminium | Host: stainless steel Working Plate: Aluminium | |||||
| Maximum Load (including clamps) (kg) | 15 | 15 | 7.5 | 15 | 30 | |||||
| Motor Input / Output power (W) | 45 / 10 | 70 / 19 | 140 / 38 | |||||||
| Working Plate Dimension(W × D in mm) | 320 × 260 | 320 × 260 | 350 × 350 | 450 × 450 | 755 × 481 | |||||
| Outside Dimension(W × D × H in mm) | 355x375x140(mm) | 355x375x140(mm) | 410 × 490 × 160 | 510 × 595 × 160 | 820 × 610 × 152 | |||||
| Accessories | Carrier with Flexible Attachments , Carrier with Fixed Attachments, Carrier with Rubber Plate | |||||||||
| Gross Weight (kg) | ||||||||||
| Shipping Weight (kg) | ||||||||||
| Shipping Dimensions (mm) | ||||||||||
| Electrical Requirements | 110V/60Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | 110V/60Hz | 220V/50Hz | 110V/60Hz | 220V/50Hz | 110V/60Hz | 220V/50Hz |
| Catalogue No. | 5401505-1 | 5401505-2 | 5401510-1 | 5401510-2 | 5401515-1 | 5401515-2 | 5401520-1 | 5401520-2 | 5401525-1 | 5401525-2 |
