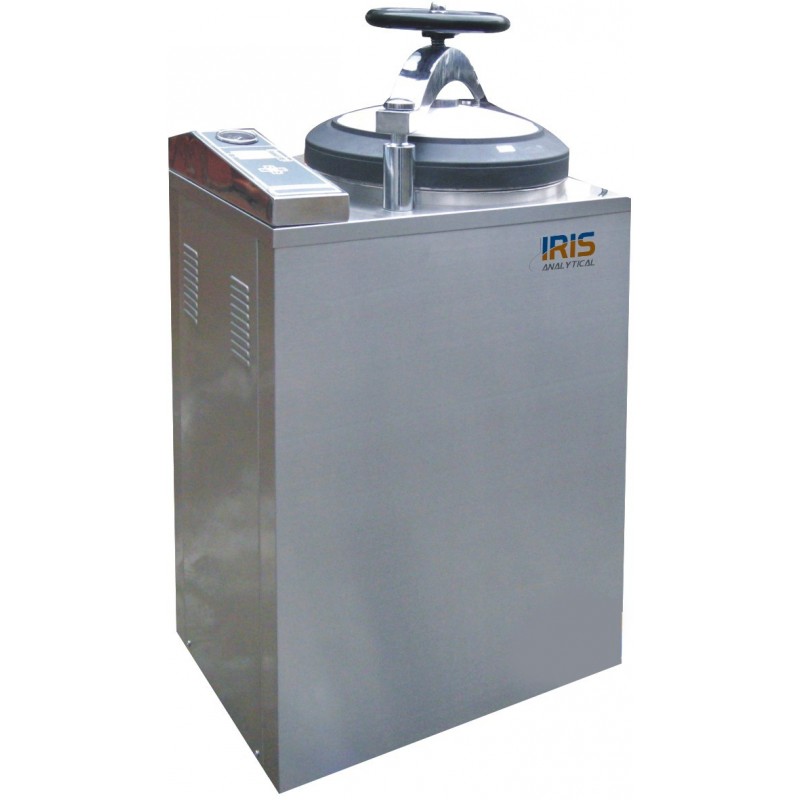

Pulse Vacuum Vertical Autoclave/Steam sterilizers IVA-5050 are floor standing self-contained sterilizer units that require no plumbing and operate from a standard single-phase power supply. Equipped with an effective air-cooling system for liquid sterilization.
Pulse Vacuum Vertical Autoclave/Steam sterilizers IVA-5050 are floor standing self-contained sterilizer units that require no plumbing and operate from a standard single-phase power supply. Equipped with an effective air-cooling system for liquid sterilisation. This speeds cooling time by up to 40% compared to standard models. The Iris Vertical Autoclaves are available from 50 liters chamber capacity. All are built with castor wheels as standard making them easy to move.
The IVA-5050is widely used for sterilisation applications in laboratory, hospitals, and clinics as well as for industrial sterilisation applications in biotechnology and pharmaceutical industries.
Data sheet
Model | IVA-5035 | IVA-5050 | IVA-5075 | IVA-5100 |
Capacity | 35 L | 50 L | 75 L | 100 L |
Sterilizing Chamber Capacity | 318×450 mm | 340×550 mm | 400×600 mm | 440×650 mm |
Materials |
| Stainless Steel |
|
|
Operating Temperature | 134°C | |||
Temperature Accuracy | ?±1°C | |||
Operating Pressure | 0.22 Mpa | |||
Maximum Pressure | 0.23 Mpa | |||
Adjustment Of Temperature | 0 to 134°C | |||
Display | Touch Digital Displa | |||
Time Range | 1 to 99 minutes | |||
Certification | CE And ECM | |||
Power Consumption | 2500 W | 3500 W | 4500 W | 4500 W |
Dimension | 600×410×1030 mm | 650×410×1140 mm | 690×47051140 mm | 730×510×1270 mm |
Net Weight | 77 kg | 83 kg | 98 kg | 110 kg |
Gross Weight | 96 kg | 102 kg | 120 kg | 135 kg |
Electrical Requirement | AC220V/50Hz | |||
Catalogue No. | 580600502 | 580601002 | 580601502 | 580602002 |
| Model | IVA-5035 | IVA-5050 | IVA-5075 | IVA-5100 |
| Capacity | 35 L | 50 L | 75 L | 100 L |
| Sterilizing Chamber Capacity | 318×450 mm | 340×550 mm | 400×600 mm | 440×650 mm |
| Materials |
| Stainless Steel |
|
|
| Operating Temperature | 134°C | |||
| Temperature Accuracy | ?±1°C | |||
| Operating Pressure | 0.22 Mpa | |||
| Maximum Pressure | 0.23 Mpa | |||
| Adjustment Of Temperature | 0 to 134°C | |||
| Display | Touch Digital Displa | |||
| Time Range | 1 to 99 minutes | |||
| Certification | CE And ECM | |||
| Power Consumption | 2500 W | 3500 W | 4500 W | 4500 W |
| Dimension | 600×410×1030 mm | 650×410×1140 mm | 690×47051140 mm | 730×510×1270 mm |
| Net Weight | 77 kg | 83 kg | 98 kg | 110 kg |
| Gross Weight | 96 kg | 102 kg | 120 kg | 135 kg |
| Electrical Requirement | AC220V/50Hz | |||
| Catalogue No. | 580600502 | 580601002 | 580601502 | 580602002 |
