Microcentrifuge IBMC-5160R design with interchangeable rotors for procedure with 1.5 ml microtubes and 0.5 ml PCR strip tubes with adjustable timing and RPM during operation anytime, as well as to check centrifugal force without stopping the machine.
The IBMC-5160R use in different applications PCR laboratories, clinical research and molecular biology and general cell culture applications. For safety we introduced electronic door lock. Available different accessories which can accommodate 18×0.5ml, 12×1.5ml multiple tube strips.
Accessories
140702002
Data sheet
- Catalogue No.
- 140702002
- Electrical Requirements
- AC 220±22V 50/60Hz 10A
- Power
- 400 W
- Gross Weight (kg)
- 45 kg
- Net Weight (kg)
- 40 kg
- External Dimemsions (HxLxW) mm
- 610X380X370 mm
- Timer
- 1 to 99 min
- Maximum temperature (℃ )
- ±1.0℃
- Temperature Range (℃ )
- -20℃ to 40℃
- Rotor
- Angle R1: 12/16×1.5/2.2ml; 16000rpm/17800×g
Angle R2: 18×0.5ml; 15000rpm/14080×g
Angle R3: 10/12×5ml; 15000rpm/15940×g
Angle R4: 24×1.5/2.2ml; 14000rpm/18757×g
- Capacity
- 10/12×5ml
- Max RCF
- 18757×g
- Speed Range (rpm)
- 16000 rpm
- Model
- IBMC-5160R
- Product Type
- Micro centrifuge
-
Energy efficient AC brushless regulating motor
-
Available with 10 profile for acceleration and 10 for deceleration, high efficiency
-
40 groups of program storage space, users can program and adjust freely
-
Protective electronic with lock door, electric door with imbalance protection to provide more protection and safety along with automatic balancing without the need for trimming
-
Designed digital LED screen to show various information including running time, speed, RCF
-
Available 15 memory slots for your personal settings
-
Eco friendly with high efficiency refrigerating system, able to maintain temperature under 0? during maximum RPM
-
Centrifugal chamber are constructed with stain less steel
-
Designed with air exhaust temperature and low noise compressor
-
Small foot print and easy handling
Model | IBMC-5100 | IBMC-5160 | IBMC-5170 | IBMC-5160R |
Capacity | 24×1.5ml | 10/12×5ml | 10×5ml | 10/12×5ml |
Max RCF | 18757×g | 18757×g | 19515×g | 18757×g |
Speed Range | 16000rpm | 16500rpm | 17000rpm | 16000rpm |
Noise | < 60dB?A) | ? 65dB?A? | ||
Rotor Diameter | 160 mm | 200 mm | 200 mm | 160 mm |
Temperature Range | - | -20? to 40? | ||
Revolutions/min | ±20 rpm | |||
Temperature Accuracy | - | ±1.0? | ||
Timer | 1 to 99 min | |||
Power Consumption | 150 W | 250 W | 250 W | 400 W |
Internal Dimension | 315×270×240 mm | 315×270×240 mm | 315×270×240 mm | 510X280X270 mm |
External Dimension | 415×370×315 mm | 380×350×300 mm | 380×350×300 | 610X380X370 mm |
Net Weight | 10kg | 11kg | 11kg | 40 kg |
Gross Weight | 12kg | 13kg | 15kg | 45 kg |
Electrical Requirement | AC 220±22V 50/60Hz 3A | AC 220±22V 50/60Hz 10A | ||
Catalogue No. | 140700502 | 140701002 | 140701502 | 140702002 |
| Model | IBMC-5100 | IBMC-5160 | IBMC-5170 | IBMC-5160R |
| Capacity | 24×1.5ml | 10/12×5ml | 10×5ml | 10/12×5ml |
| Max RCF | 18757×g | 18757×g | 19515×g | 18757×g |
| Speed Range | 16000rpm | 16500rpm | 17000rpm | 16000rpm |
| Noise | < 60dB?A) | ? 65dB?A? | ||
| Rotor | R1: 12×1.5ml; 16000rpm/17800×g, R2: 24×1.5ml; 14000rpm/18757×g | Angle R1:12/16×1.5/2.2ml; 16500rpm/18360×g Angle R2: 10/12×5ml; 15000rpm/15940×g Angle R3:24×1.5/2.2ml; 14000rpm/18757×g | Angle R1: 12×1.5/2.2ml; 17000rpm/19515×g Angle R2: 10x5ml; 15000rpm/15940xg
| Angle R1: 12/16×1.5/2.2ml; 16000rpm/17800×g Angle R2: 18×0.5ml; 15000rpm/14080×g Angle R3: 10/12×5ml; 15000rpm/15940×g Angle R4: 24×1.5/2.2ml; 14000rpm/18757×g
|
| Rotor Diameter | 160 mm | 200 mm | 200 mm | 160 mm |
| Temperature Range | - | -20? to 40? | ||
| Revolutions/min | ±20 rpm | |||
| Temperature Accuracy | - | ±1.0? | ||
| Timer | 1 to 99 min | |||
| Power Consumption | 150 W | 250 W | 250 W | 400 W |
| Internal Dimension | 315×270×240 mm | 315×270×240 mm | 315×270×240 mm | 510X280X270 mm |
| External Dimension | 415×370×315 mm | 380×350×300 mm | 380×350×300 | 610X380X370 mm |
| Net Weight | 10kg | 11kg | 11kg | 40 kg |
| Gross Weight | 12kg | 13kg | 15kg | 45 kg |
| Electrical Requirement | AC 220±22V 50/60Hz 3A | AC 220±22V 50/60Hz 10A | ||
| Catalogue No. | 140700502 | 140701002 | 140701502 | 140702002 |
| Model | Image | Name | Product Detail | Availability | Price | Action |
| 140702002 |
|
Angle Rotor 3 |
10/12×5ml; 15000rpm/15940×g |
3-4 Weeks |
Price On Request |
|
| 140702002 |
|
Angle Rotor 4 |
24×1.5/2.2ml; 14000rpm/18757×g |
3-4 Weeks |
Price On Request |
|
Download Catalog
You might also like Products
16 other products in the same category
Mini Centrifuges ICP-350(AC85V/50Hz)
$650.00
Mini Centrifuges ICP-350 fully automatic instrument, allows considerable time saving, best for the hematocrit, medical and laboratory and research applications. Equipped with shock absorber to minimize vibration during working and provide flexibility in your laboratory.
Benchtop High Speed Centrifuge IBHC-1020
$1,640.00
Benchtop High Speed Centrifuge IBHC-1020 small footprintof capacity up to 8x7 ml with maximum speed ranging 16500 rpm. Offer SCT and SBT speed control parameter to avoid mix up and ensure to get maximum samples
Floor Standing Low Speed Refrigerated Centrifuge IFLRC-3501
$8,600.00
Floor Standing Low Speed Refrigerated Centrifuge IFLRC-3501 designed with refrigerating unit. Allow application in tubes up to 4 X 600ml with maximum 4200 rpm used in used in blood bank, pharmaceutical industries, biological chemistry, biological product and other research applications.
Portable Centrifuge IPC-360
$2,000.00
Portable Centrifuge IPC-360 low speed, user-friendly large LCD display to display real-time information and parameter. Spins samples volume up to 8ml/5ml/3mlx24,50mlx6 with maximum speed 5000 rpm and available with acceleration and for deceleration
Benchtop Low Speed Refrigerated Centrifuge IBRLC-1450
$9,470.00
Benchtop Low Speed Refrigerated Centrifuge IBRLC-1450 is a refrigerated centrifuge with touch display for gentle acceleration and deceleration. Equipped with compressors, CFC-free refrigerants, refrigerating or heating double loop, which make the machine heat and cool fast and have low noise as well as small vibration high precision.
Floor Standing High Speed Refrigerated Centrifuge IFHRC-4040(220/60Hz)
$0.00
Floor Standing High Speed Refrigerated Centrifuge IFHRC-4040 is ISO9001, CE, and FDA certify. Designed with parameters, including RCF, variable frequency brushless motor, microcomputer control.

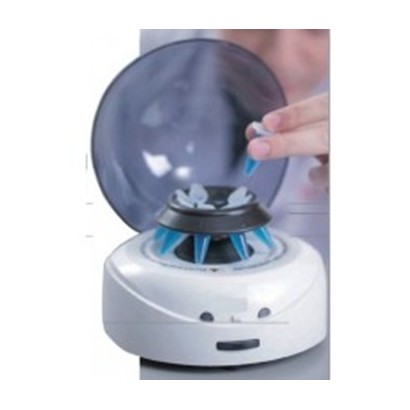

Mini Centrifuges ICP-105(240V/60Hz)
