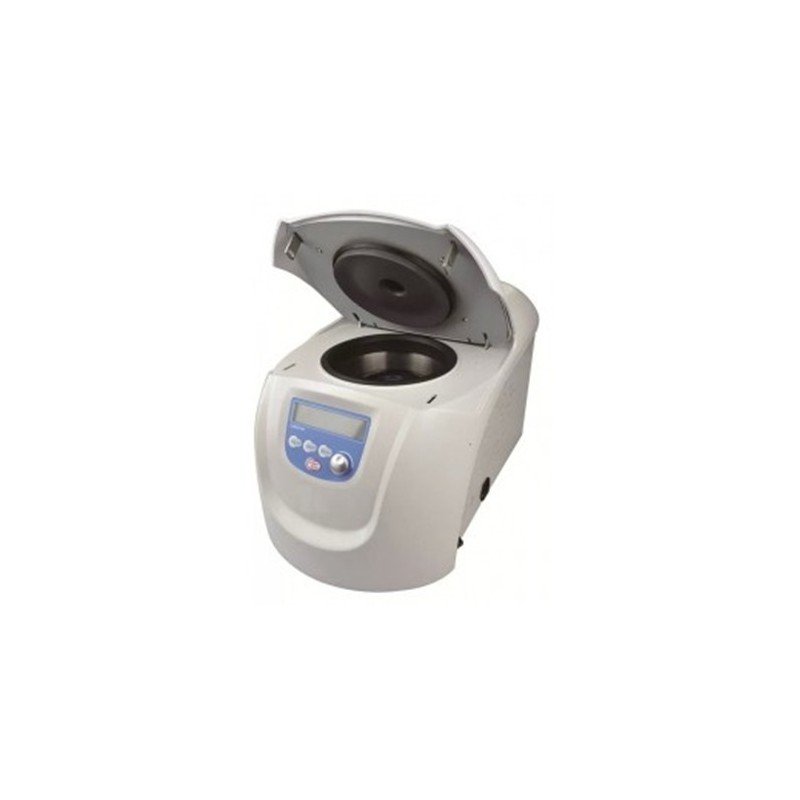

Microcentrifuge IBMC-6024(110V/60Hz)

Microcentrifuge IBMC-6024  is widely used in physical and chemistry analysis, biochemistry, cellular and molecular biology, clinical Labs and blood donation centers, and is ideal for high end research applications i.e. sedimentation of cells and viruses, separation of sub-cellular organelles,

Share

Microcentrifuge IBMC-6024  is widely used in physical and chemistry analysis, biochemistry, cellular and molecular biology, clinical Labs and blood donation centers, and is ideal for high end research applications i.e. sedimentation of cells and viruses, separation of sub-cellular organelles, isolation of macromolecules such as DNA,RNA, proteins or lipids.

Precise control

  1. Brushless DC motor accelerates quickly and effortlessly to the set speed
  2. High accuracy of speed in ±20 rpm
  3. Operation can be timed from 30 seconds to 99 minutes or used in continuous mode
  4. Timer starts once the target speed reached, for accurate separation time

Ergonomic design

  1. User-friendly large LCD display shows running information
  2. Both RPM or G-force can be set and displayed
  3. The parameters can be modified after the set speed is reached.
  4. The short spin function is used for quick spins by pressing and holding PULSE key. The centrifuge speed can be accelerated and held at the target speed.
  5. Automatic release of lid when the rotor stops to save processing time (excluding IBMC-6024R)
  6. Easy-to-read display and sound alerts
140750501

Data sheet

Catalogue No.
140750501
Electrical Requirements
110V/60Hz
Net Weight (kg)
12 kg
External Dimemsions (HxLxW) mm
280×364×266 mm
Drive System
Brushless DC motor
Run Time
30sec to 99min-HOLD (Continuous operation)
Speed Increment (rpm)
200-15000rpm
Capacity
5mL×18;0.2mL/0.5mL/1.5mL/ 2mL×24;0.5mL×36; PCR8×4
Max RCF
21380×g
Speed Range (rpm)
15000rpm
Model
IBMC-6024
Product Type
Micro Centrifuge
  • 2-point lid-lock mechanism ensures secure closure Automatic lid opening when run is complete
  • High strength aluminium alloy rotor can be fully autoclaved with unlimited service life
  • Special multi-flow air cooling design helps keep lower rotor temperature
  • Intuitive symbols display run status
  • Full-digit speed display (rpm/Rcf) easy identification of parameters
  • Centrifuge goes into a self-diagnostics when switched on and then displays accumulative running time and last running parameters
  • The short spin function is used for quick spins by pressing and holding PULSE key
  • Special multi-flow air cooling design protects sensitive samples
  • FastTemp function for fast pre-cooling and maximum temperature accuracy inside the rotor

Model

IBMC-6024

IBMC-6024R

IBMC-6124

Max. capacity

5mL×18;0.2mL/0.5mL/1.5mL/ 2mL×24;0.5mL×36; PCR8×4

24 capillary tubes and 2ml×24 rotor

Max. speed rpm (Angle rotor)

15000rpm (200-15000rpm), increment:10rpm

15000rpm (200-15000rpm), increment:10rpm

200 to 14000 rpm

Max. RCF[×g]

21380×g, increment:10×g

21380×g, increment:10×g

18620×g

Interference suppression







Noise level at max. speed(approximately)

?58

?56



Revolution/rpm

±20 rpm

Temperature Range

N/A

-20oC to 40Oc



Run Time

30sec to 99min-HOLD (Continuous operation)

Driving Motor

Brushless DC motor

Weight including rotor







Dimensions

280×364×266 mm

338×580×324 mm

280×364×274 mm

Weight

12kg

30kg

10 kg

Electrical Requirements

110V/60Hz

220V/50Hz

110V/60Hz

220V/50Hz

110V/60Hz

220V/50Hz

Catalogue No.

 140750501

 140750502

 140751001

 140751002

 140751501

 140751502

Model

IBMC-6024

IBMC-6024R

IBMC-6124

Max. capacity

5mL×18;0.2mL/0.5mL/1.5mL/ 2mL×24;0.5mL×36; PCR8×4

24 capillary tubes and 2ml×24 rotor

Max. speed rpm (Angle rotor)

15000rpm (200-15000rpm), increment:10rpm

15000rpm (200-15000rpm), increment:10rpm

200 to 14000 rpm

Max. RCF[×g]

21380×g, increment:10×g

21380×g, increment:10×g

18620×g

Noise level at max. speed(approximately)

?58

?56

Revolution/rpm

±20 rpm

Temperature Range

N/A

-20 to 40 °C

N/A

Run Time

30sec to 99min-HOLD (Continuous operation)

Driving Motor

Brushless DC motor

Dimensions

280×364×266 mm

338×580×324 mm

280×364×274 mm

Weight

12kg

30kg

10 kg

Electrical Requirements

110V/60Hz

220V/50Hz

110V/60Hz

220V/50Hz

110V/60Hz

220V/50Hz

Catalogue No.

 140750501

 140750502

 140751001

 140751002

 140751501

 140751502

Download Catalog

download pdf product details
