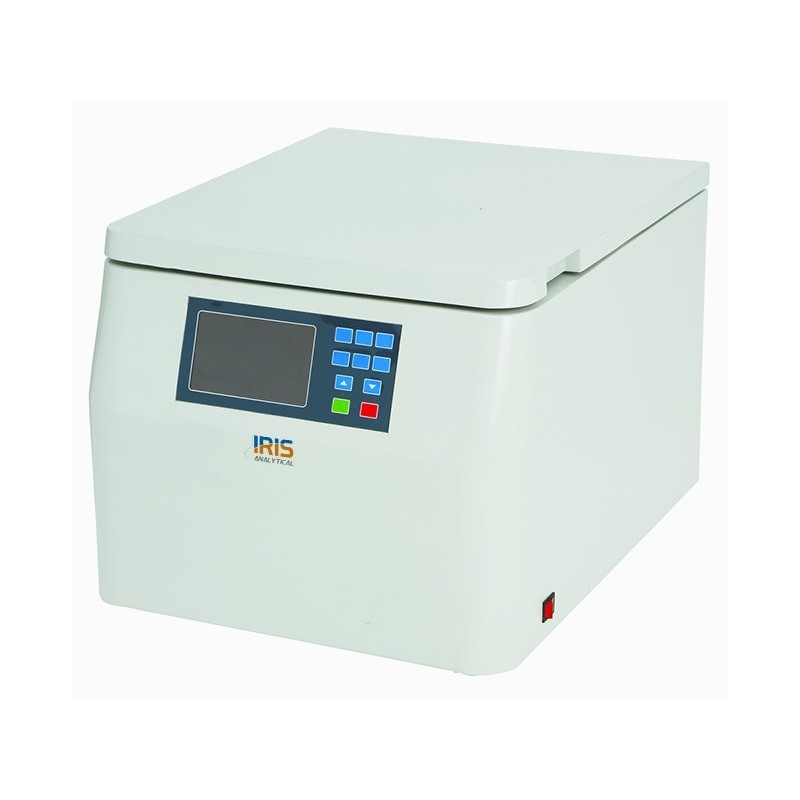

Benchtop Large Capacity Refrigerated Centrifuge IBLC-1080(AC110/50Hz)
$5,213.00
Benchtop Large Capacity Refrigerated Centrifuge IBLC-1080 compiled with microcomputer allow for instant rotor identification, which robotically converts the rotational speed to the relevant RCF checking the user from setting a speed above the capabilities of the installed rotor along with R404a compressor unit and are convenient for a wide range of applications.
Benchtop Large Capacity Refrigerated Centrifuge IBLC-1080 compiled with microcomputer allow for instant rotor identification, which robotically converts the rotational speed to the relevant RCF checking the user from setting a speed above the capabilities of the installed rotor along with R404a compressor unit and are convenient for a wide range of applications.
Features with LCD/LED touch screen with multi-functional knob combination parameters. Accommodates different rotor and adaptors, as these motor capable of accommodating a great number of tubes at once. Available with 10 profiles for acceleration and for deceleration with high efficiency. Additionally, it comes with DC brushless converter motor.
Accessories
Rotors
|
Rotors and adaptor |
Capacity |
|
Rotor 1 |
50ml×6;5800rpm;3760×g |
|
Rotor 2 |
500ml×4;4000rpm;3040×g |
|
Rotor 3 |
96mlx8;4000rpm;2200×g |
|
Rotor 4 |
750ml×4;4000rpm;3780×g |
|
Rotor 5 |
250ml×6;4200rpm;3500×g |
|
Rotor 6 |
250ml×4;4300rpm;3582×g |
1401300501
Data sheet
- Catalogue No.
- 1401300501
- Electrical Requirements
- AC110/50Hz, 5A
- Shipping Dimensions (HxLxW) mm
- 670x780x630 mm
- Net Weight (kg)
- 72 kg
- External Dimemsions (HxLxW) mm
- 545x660x490mm
- Timer
- 1 to 99 min
- Speed Control Accuracy
- ± 30 rpm
- Capacity
- 750mlx4
- Max RPM
- 5060xg
- Speed Range (rpm)
- 5800 rpm
- Model
- IBLC-1080
- Energy DC efficient brushless regulating motor
- Available with 10 profile for acceleration and 10 for deceleration, high efficiency
- Allow automatic identification system for magnetic rotor, automatic matching of corresponding rotor program, preventing misoperation and ensuring centrifugal safety
- Electronic door lock, full steel door cover protection, superior to industrial standards and Password lock function
- Microprocessor controlled
- Protective electronic with lock door, electric door with imbalance protection to provide more protection and safety along with automatic balancing without the need for trimming
- Designed digital LCD, LED screen with multi-functional knob combination
- Eco friendly with high efficiency refrigerating system, able to maintain temperature under 0? during maximum RPM
- Centrifugal chamber are constructed with stain less steel
- Designed with air exhaust temperature and low noise compressor
- CFC-free refrigerants, refrigerating/heating double loop
| Model | IBLC-1080 | IBLC-1080R | ||
| Capacity | 750mlx4 | 750mlx4 | ||
| Max RCF | 5060xg | 5060xg | ||
| Speed Range | 5800 rpm | 5800 rpm | ||
| Noise | <65dB(A) | |||
| Temperature Range | - | -20 to +40? | ||
| Revolutions/min | ± 30 rpm | |||
| Temperature Accuracy | - | ±1? | ||
| Timer | 1 to 99 min | |||
| Dimension | 545x660x490mm | 725x660x440 mm | ||
| Packing Dimension | 670x780x630 mm | 880x780x620 mm | ||
| Weight | 72 kg | 75 kg | ||
| Electrical Requirement | AC110/50Hz, 5A | 220V/60Hz 5A | AC110/50Hz, 5A | 220V/60Hz 5A |
| Catalogue No. | 1401300501 | 1401300502 | 1401301001 | 1401301002 |
| Model | Image | Name | Product Detail | Availability | Price | Action |
| 1401300501 |
|
Angle Rotor 1 |
50ml×6;5800rpm;3760×g |
3-4 Weeks |
Price On Request |
|
| 1401300501 |
|
Swing Rotor 2 |
500ml×4;4000rpm;3040×g |
3-4 Weeks |
Price On Request |
|
| 1401300501 |
|
Swing Rotor 3 |
96mlx8;4000rpm;2200×g |
3-4 Weeks |
Price On Request |
|
| 1401300501 |
|
Swing Rotor 4 |
750ml×4;4000rpm;3780×g |
3-4 Weeks |
Price On Request |
|
| 1401300501 |
|
Swing Rotor 5 |
250ml×6;4200rpm;3500×g |
3-4 Weeks |
Price On Request |
|
| 1401300501 |
|
Swing Rotor 6 |
250ml×4;4300rpm;3582×g |
3-4 Weeks |
Price On Request |
|
Download Catalog
You might also like Products
16 other products in the same category
Microcentrifuge IBMC-1000
$2,285.00
Microcentrifuge IBMC-1000 provides quick cooling function with ST microprocessor control system for rapid pre-cooling of rotor and centrifuge. Spins sample volumes up to 400ml (5ml×8/100mlx4) with maximum speed 6000 rpm.
Microcentrifuge IBMC-6024(220V/50Hz)
$0.00
Microcentrifuge IBMC-6024 is widely used in physical and chemistry analysis, biochemistry, cellular and molecular biology, clinical Labs and blood donation centers, and is ideal for high end research applications i.e. sedimentation of cells and viruses, separation of sub-cellular organelles,
Low Speed Centrifuges IBLC-2300
$0.00
Low Speed Centrifuges IBLC-2300 accommodates angle, swing rotor and swing-out ELISA plate rotor as these motor capable of accommodating a great number of tubes at once. Suitable for clinical medicine, radio-immunity,
Microcentrifuge IBMC-6024R(110V/60Hz)
$0.00
Microcentrifuge IBMC-6024R is widely used in physical and chemistry analysis, biochemistry, cellular and molecular biology, clinical Labs and blood donation centers, and is ideal for high end research applications i.e. sedimentation of cells and viruses, separation of sub-cellular organelles,
Automatic Decapping Centrifuge IACC-1100
$9,128.00
Automatic Decapping Centrifuge IACC-1100 is aninnovative and best quality range automatic decapping centrifuge. Suitable for the application in medical and hospitals for blood collection.
Floor Standing Large Capacity Refrigerated Centrifuge IFLRC-5000
$52,820.00
Floor Standing Large Capacity Refrigerated Centrifuge IFLRC-5000 designed for the pharmaceutical and biological products. The angle rotor and swing rotor are available for separation of cells suspension. This versatile and reliable centrifuge is used for high-throughput clinical, medical and research applications.
Portable Centrifuge IPC-210(110V/60Hz)
$0.00
Portable Centrifuge IPC-210 ideal for the separation of serum plasma. urea, blood samples and other routine applications in hospital and research laboratories. A small footprint and quiet operation makes
Floor Standing High Speed Refrigerated Centrifuge IFHRC-4060(110/50Hz)
$0.00
Floor Standing High Speed Refrigerated Centrifuge IFHRC-4060 is ISO9001, CE, and FDA certify. Designed with parameters, including RCF, variable frequency brushless motor, microcomputer control.

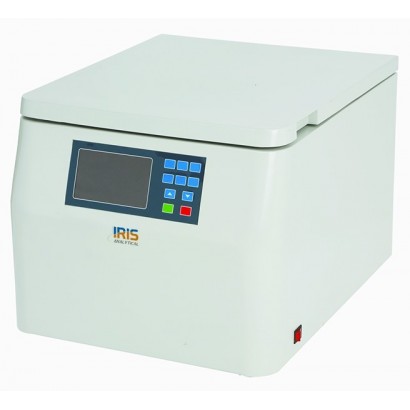

Benchtop Large Capacity Refrigerated Centrifuge IBLC-1080R(AC110/50Hz)
