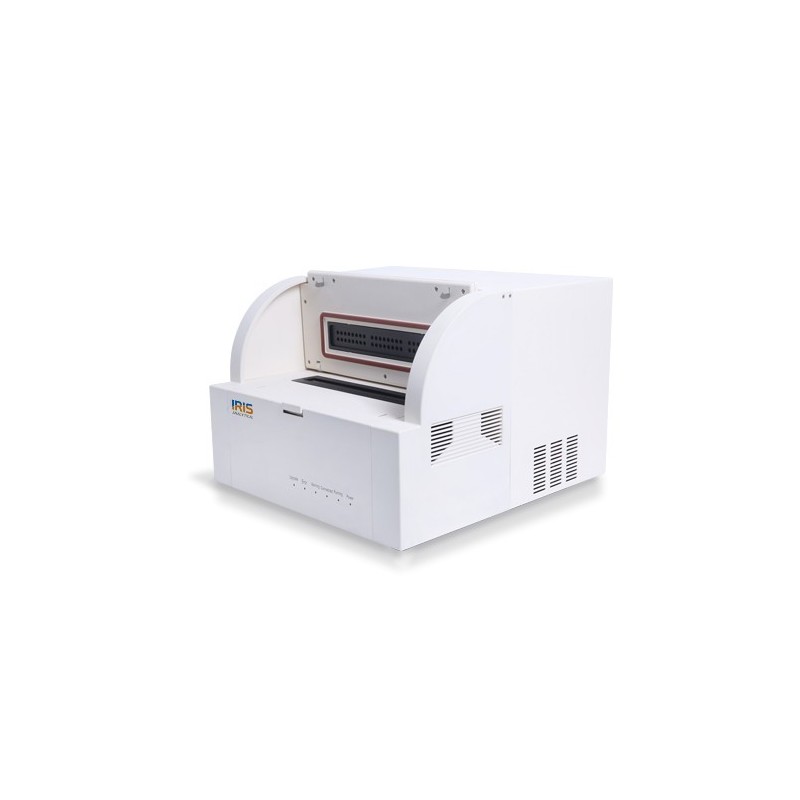

Real-Time PCR System 4 Channel ITR-4000

ITR-4000 real time PCR is applicable to molecular biology, microbiology, medicine, molecular cloning in genetics, sequence analysis and various fields. It conducts the whole process of DNA amplification and PCR products analysis in an enclosed tube. Through PC control, it realizes real time as well as auto analysis.

Share

ITR-4000 real time PCR is applicable to molecular biology, microbiology, medicine, molecular cloning in genetics, sequence analysis and various fields. It conducts the whole process of DNA amplification and PCR products analysis in an enclosed tube. Through PC control, it realizes real time as well as auto analysis.

6206005-00

Data sheet

Product Type
ITR-4000
Temperature Range (℃)
30 to 99.9 °C
Ramp Rate
≥ 6.5°C/s
Selectable Heated Lid Temperature
30-105°C
Fluorescence (Detection range)
F1: 520 to 540 nm & F2: 540 to 580 nm
Dynamic Range
10-1010
Sensitivity (detection threshold)
10 Copy
Temperature Uniformity
±0.3 °C(@55 °C)
Temp Accuracy
±0.1 °C(@55 °C)
Additional Dyes
F1:FAM, SYBR Green, F2:HEX, VIC, JOE
Software
Windows XP / Vista / 7
Sample Capacity (0.2ml)
48×0.2ml
Data Transfer
USB 2.0/RS-232
Dimensions L x W x H (mm)
457×420×335mm
Catalogue No.
6206005-00
  • Good practicability

  • Wide detection scopes

  • High sensitivity and accuracy

  • Quantitative analysis

  • Real-time data monitoring

  • Real-time analysis display of the melting curves

  • Automatic assessment of negative or positive results.

Model

ITR-4000

Sample Capacity

48×0.2ml

Test Dynamic Range

10-1010

Full plate fluorescence detection time

?3s

Applicable fluorophores



F1?FAM, SYBR Green

F2?HEX, VIC, JOE

Temperature Range

30.0-99.9 °C

Temperature Uniformity

±0.3 °C?@55 °C)

Temperature Accuracy

±0.1°C?@55°C?

Heating Rate (MAX)

4°C/s

Cooling Rate (MAX)

4°C/s

Average Heating Rate

?1.8°C/s

Average Cooling Rate

?1.8°C/s

Hot-lid Temp. Range

30-105°C

Fluorescence Repeatability

CV?3%

Sample Detection Repeatability

CV?3%

Sample Linearity

r ?0.98

Fluorescence Linearity

r ?0.99

Communication Interface

USB 2.0/RS-232

Operation System

Windows XP / Vista / 7

Dimension

457×420×335mm

Electrical Requirement



Catalogue No.

6006005-00

Model

ITR-4000

Sample Capacity

48×0.2ml

Test Dynamic Range

10-1010

Full plate fluorescence detection time

?3s

Applicable fluorophores



F1?FAM, SYBR Green

F2?HEX, VIC, JOE

Temperature Range

30.0-99.9 °C

Temperature Uniformity

±0.3 °C?@55 °C)

Temperature Accuracy

±0.1°C?@55°C?

Heating Rate (MAX)

4°C/s

Cooling Rate (MAX)

4°C/s

Average Heating Rate

?1.8°C/s

Average Cooling Rate

?1.8°C/s

Hot-lid Temp. Range

30-105°C

Fluorescence Repeatability

CV?3%

Sample Detection Repeatability

CV?3%

Sample Linearity

r ?0.98

Fluorescence Linearity

r ?0.99

Communication Interface

USB 2.0/RS-232

Operation System

Windows XP / Vista / 7

Dimension (L×W×H)

457×420×335mm

Electrical Requirement



Catalogue No.

6206005-00

Download Catalog

download pdf product details
