Membrane Filters

Membrane filtration is one kind of physical filtration process where a contaminated fluid is passed through a special pore size membrane to separate micro-organisms and suspended particles from process liquid or gas. The typical pore size used for micro-filtration ranges from about 0.1 to 10um.

Membrane filters or membranes are microporous ...

Full Description
Specifications

Membrane filters or membranes are microporous films with specific pore size ratings. Membranes retain particles and microorganisms that exceed their pore ratings by acting as a physical barrier and capturing such particles on the surface of the membrane.

Iris Analytical offers membrane discs in diameters from 13mm to 293mm and materials including PES , PVDF , PTFE , MCE , Nylon , PP , CA CN and GF membrane filters.

Applications

General clean and filtration
Sample Preparation
Environmental Monitoring and Analysis
Filtration of Aqueous and Organic Solutions
Fluid Monitoring
Pharmaceutical Products Analysis
Chromatography and Mass Spec Sample Preparation
Venting and Gas Filtration

Membrane Type	Pore Size(um)	Diameter(mm)
PES	0.1-1.0	13, 25,37,47,90,142,293
MCE	0.1-8.0	13,25,37,47,90,142, 293
NYLON	0.1- 10.0	13,25,37,47,90,142,293
PVDF	0.1-0.45	13,25,37,47,90,142,293
PTFE	0.1 -5.0	13,25,37,47,90,142,293
PP	0.22-20.0	13,37,47,90,125,142,293
CA	0.22-8.0	13,25,37,47,90,142,293
Nylon Mesh	20-180	25,47,90, 30cm×3m
PC	0.1-8.0	13,25,37,47,90,142

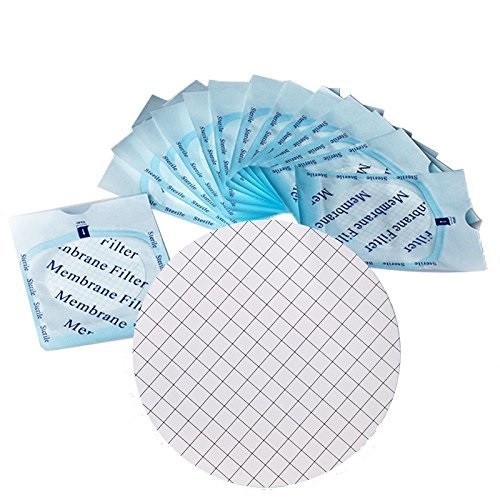

Mixed Cellulose Esters (MCE) Membrane Filter
